5646AB9

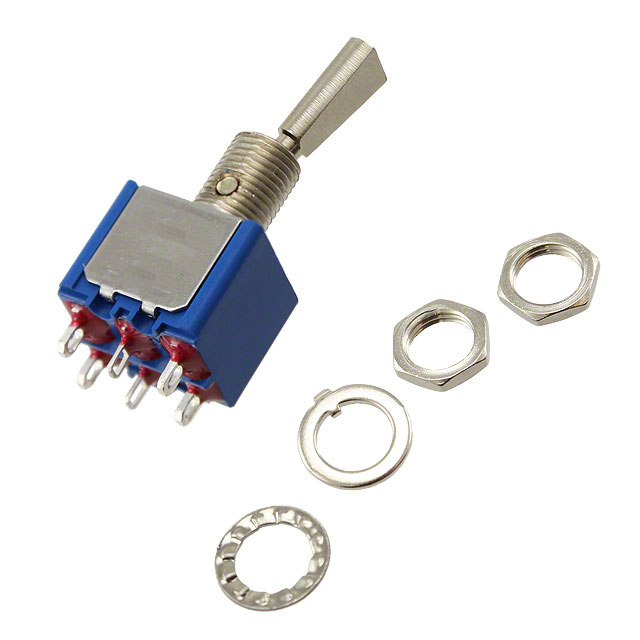

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5646AB9 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5646AB9 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5646AB9 |
|---|---|
| Manufacturer | APEM Inc. |
| Description | SWITCH TOGGLE DPDT 6A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 50 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $5.036 | $3.27 | $3.174 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $2.597 | $2.501 | $2.308 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5646AB9 | Manufacturer | APEM Inc. |
|---|---|---|---|
| Description | SWITCH TOGGLE DPDT 6A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14125 pcs | Data sheet | 5000 Series Datasheet |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | Solder Lug |
| Switch Function | On-On | Series | 5000 |
| Panel Cutout Dimensions | Circular - 6.50mm Dia | Packaging | Bulk |
| Other Names | 5646A9 5646A9-ND 5646AB9-ND 679-2491 |
Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | Epoxy Sealed Terminals | Electrical Life | 50,000 Cycles |
| Detailed Description | Toggle Switch DPDT Panel Mount | Current Rating | 6A (AC), 4A (DC) |
| Circuit | DPDT | Bushing Thread | 1/4-40 |
| Actuator Type | Flatted | Actuator Material | Polyamide (PA), Nylon |
| Actuator Length | 11.40mm |
