Home > Products > Switches > Tactile Switches > 3FTH946

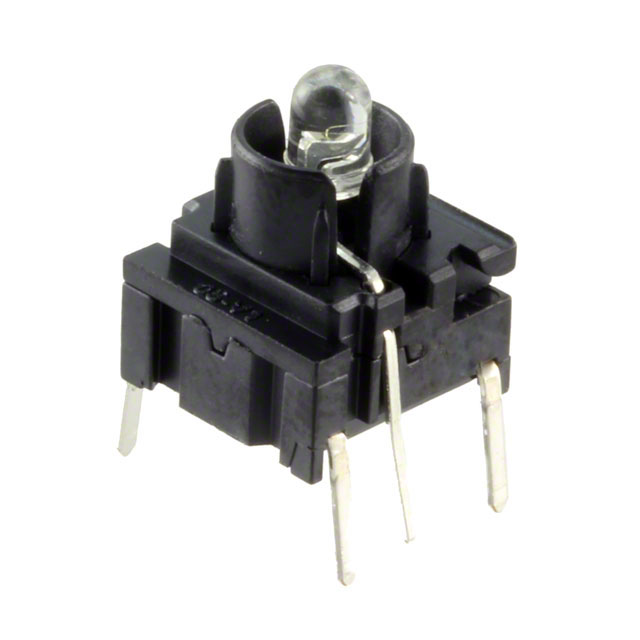

3FTH946

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3FTH946 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	3FTH946
Manufacturer	APEM Inc.
Description	SWITCH TACTILE SPST-NO 0.05A 24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 23442 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.092	$1.986	$1.934	$1.881
	$1.725	$1.568	$1.463	$1.411

Product parameter
Data sheet

Product parameter

Part Number	3FTH946	Manufacturer	APEM Inc.
Description	SWITCH TACTILE SPST-NO 0.05A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23442 pcs	Data sheet	MEC Catalog 3C, 3E, 3F multimec® Series Datasheet
Category	Switches	Termination Style	PC Pin
Switch Travel	1.00mm	Switch Function	Off-Mom
Series	Multimec® 3	Packaging	Tube
Outline	10.10mm x 10.10mm	Other Names	3FTH946-ND 679-3732
Operating Temperature	-40°C ~ 160°C	Operating Force	300gf
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	10,000,000 Cycles	Manufacturer Standard Lead Time	29 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Illumination Voltage (Nominal)	2 VDC	Illumination Type, Color	LED, Yellow
Illumination	Illuminated	Features	Sealed - Flux Protection
Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole	Contact Rating @ Voltage	0.05A @ 24VDC
Circuit	SPST-NO	Actuator Type	Plunger for Cap
Actuator Orientation	Top Actuated	Actuator Material	Polybutylene Terephthalate (PBT)
Actuator Length, Right Angle	-	Actuator Height off PCB, Vertical	10.40mm
