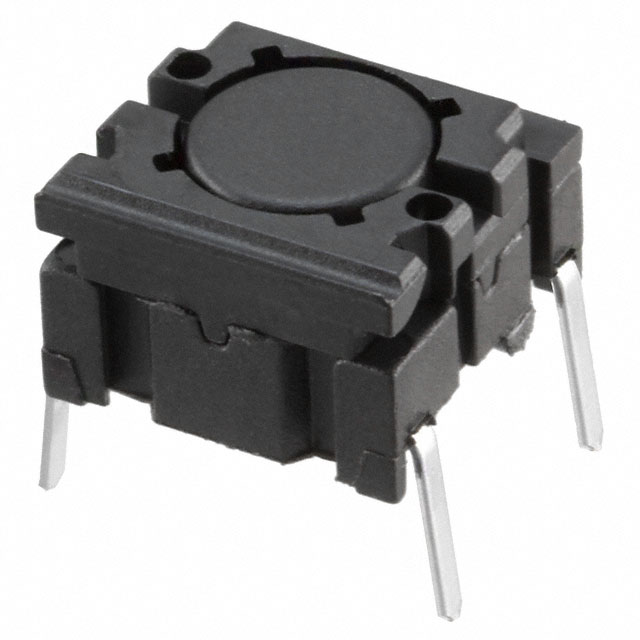

3ATH9
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3ATH9 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3ATH9 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3ATH9 |
|---|---|
| Manufacturer | APEM Inc. |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.006 | $0.967 | $0.889 | $0.773 | $0.735 | |
| 300 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.715 | $0.696 | $0.541 | $0.503 | ||
- Product parameter
Product parameter
| Part Number | 3ATH9 | Manufacturer | APEM Inc. |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71246 pcs | Data sheet | |
| Category | Switches | Termination Style | PC Pin |
| Switch Travel | 1.00mm | Switch Function | Off-Mom |
| Series | Multimec® 3 | Packaging | Tube |
| Outline | 10.10mm x 10.10mm | Other Names | 3ATH9-ND 679-3724 RA3ATH9 |
| Operating Temperature | -40°C ~ 160°C | Operating Force | 300gf |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 10,000,000 Cycles | Manufacturer Standard Lead Time | 29 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | Sealed - Flux Protection |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole | Contact Rating @ Voltage | 0.05A @ 24VDC |
| Circuit | SPST-NO | Actuator Type | Plunger for Cap |
| Actuator Orientation | Top Actuated | Actuator Material | Polyphenylene Sulfide (PPS) |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 6.40mm |
