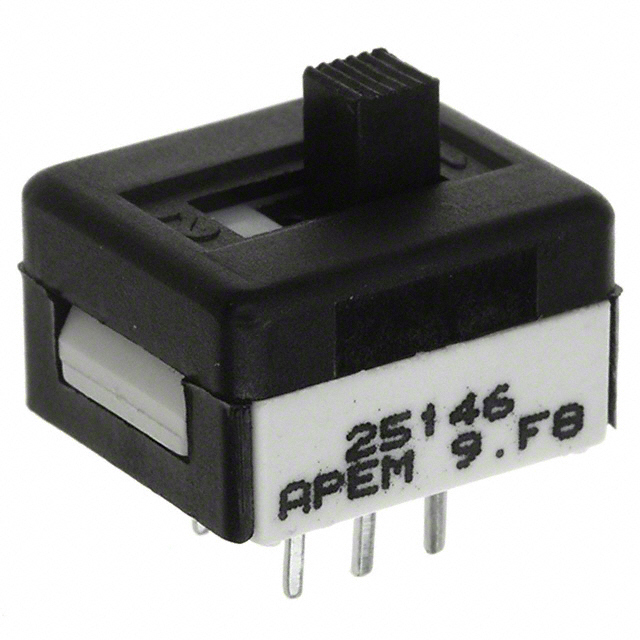

25146NAH
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 25146NAH with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 25146NAH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 25146NAH |
|---|---|
| Manufacturer | APEM Inc. |
| Description | SWITCH SLIDE DPDT 4A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 50 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $3.555 | $3.173 | $3.046 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $2.539 | $2.285 | $2.031 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 25146NAH | Manufacturer | APEM Inc. |
|---|---|---|---|
| Description | SWITCH SLIDE DPDT 4A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19070 pcs | Data sheet | 25000N Series Datasheet |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | PC Pin |
| Switch Travel | 4.00mm | Switch Function | On-On |
| Series | 25000N | Packaging | Bulk |
| Other Names | 25146NAH-ND 679-1892 |
Operating Temperature | -40°C ~ 85°C |
| Operating Force | - | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 20,000 Cycles |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Epoxy Sealed Terminals | Electrical Life | 10,000 Cycles |
| Detailed Description | Slide Switch DPDT Through Hole | Current Rating | 4A (AC), 1A (DC) |
| Contact Timing | Not Specified | Contact Material | Silver (Ag) |
| Contact Finish | - | Circuit | DPDT |
| Actuator Type | Standard | Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Actuator Length | 2.80mm |
