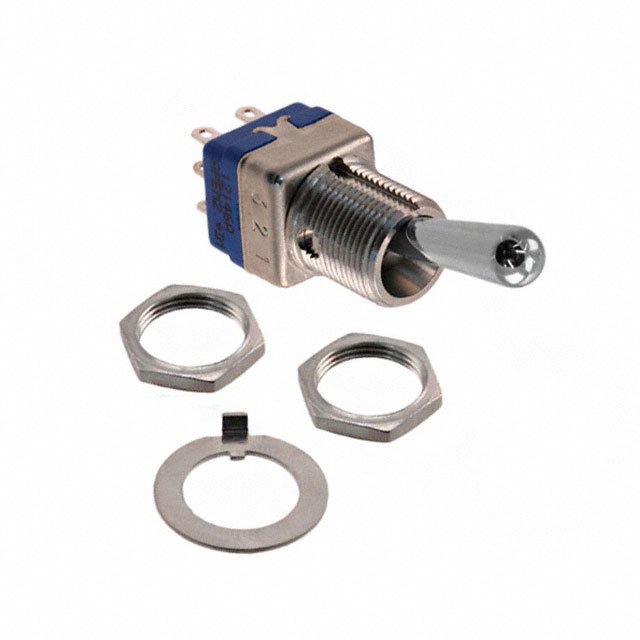

12246A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 12246A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 12246A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 12246A |
|---|---|
| Manufacturer | APEM Inc. |
| Description | SWITCH TOGGLE DPDT 4A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 25 pcs | ||||
|---|---|---|---|---|---|
| $16.117 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 12246A | Manufacturer | APEM Inc. |
|---|---|---|---|
| Description | SWITCH TOGGLE DPDT 4A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2198 pcs | Data sheet | 12000 Series Datasheet |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | PC Pin |
| Switch Function | On-On | Series | 12000 |
| Panel Cutout Dimensions | Circular - 12.50mm Dia | Packaging | Bulk |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | Epoxy Sealed Terminals | Electrical Life | 50,000 Cycles |
| Detailed Description | Toggle Switch DPDT Panel Mount | Current Rating | 4A (AC/DC) |
| Circuit | DPDT | Bushing Thread | 15/32-32 |
| Actuator Type | Standard Round | Actuator Material | Brass, Chrome Plated |
| Actuator Length | 17.30mm |
