Home > Products > Resistors > Chip Resistor - Surface Mount > SMA-A0204BTNX22K

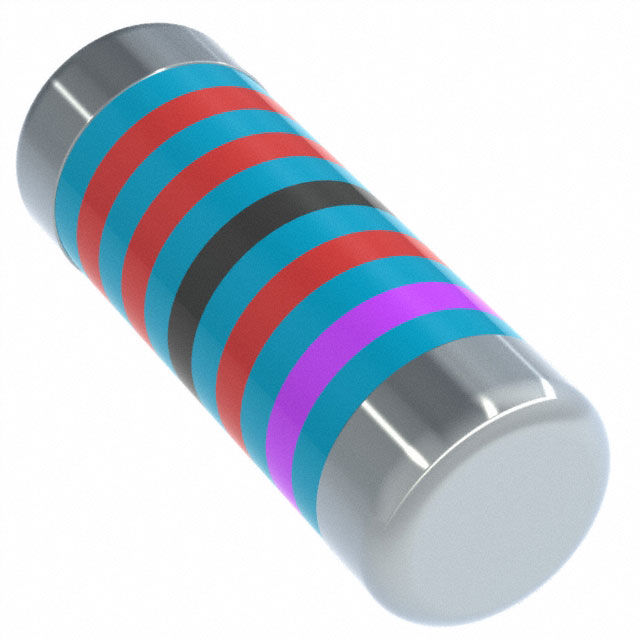

SMA-A0204BTNX22K

SMA-A0204BTNX22K

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMA-A0204BTNX22K with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SMA-A0204BTNX22K
Manufacturer	AMP Connectors / TE Connectivity
Description	RES 22K OHM 0.1% 2/5W MELF 0204
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 257138 pcs
Reference Price (In US Dollars)	3000 pcs
Reference Price (In US Dollars)	$0.084

Product parameter
Data sheet

Product parameter

Part Number	SMA-A0204BTNX22K	Manufacturer	AMP Connectors / TE Connectivity
Description	RES 22K OHM 0.1% 2/5W MELF 0204	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	257138 pcs	Data sheet	SMA-A Series Datasheet
Category	Resistors	Tolerance	±0.1%
Temperature Coefficient	±15ppm/°C	Supplier Device Package	0204
Size / Dimension	0.055" Dia x 0.138" L (1.40mm x 3.50mm)	Series	SMA-A
Resistance	22 kOhms	Power (Watts)	0.4W, 2/5W
Packaging	Tape & Reel (TR)	Package / Case	MELF, 0204
Other Names	2-2176315-9 A127081TR	Operating Temperature	-55°C ~ 155°C
Number of Terminations	2	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	38 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	-	Features	Automotive AEC-Q200
Failure Rate	-	Detailed Description	22 kOhms ±0.1% 0.4W, 2/5W Chip Resistor MELF, 0204 Automotive AEC-Q200 Metal Film
Composition	Metal Film
