Home > Products > Connectors, Interconnects > Circular Connectors > 5786766-1

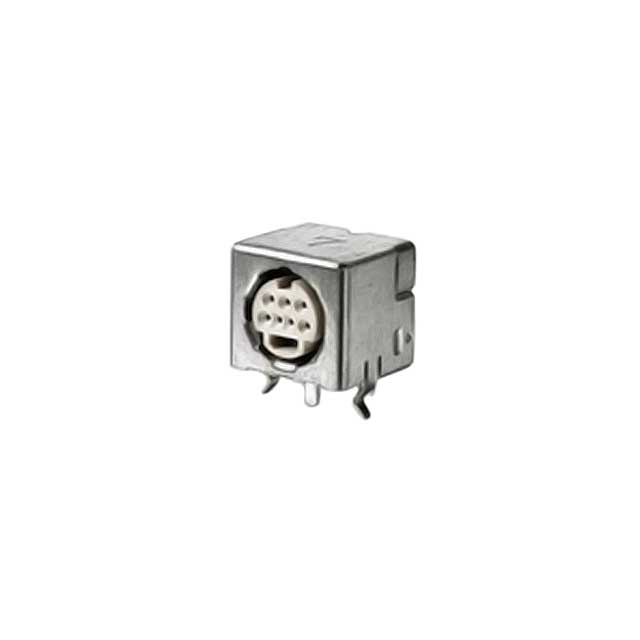

5786766-1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5786766-1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	5786766-1
Manufacturer	TE Connectivity AMP Connectors
Description	CONN RCPT MINI DIN 7P R/A SPCL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 46873 pcs
Reference Price (In US Dollars)	5000 pcs
Reference Price (In US Dollars)	$0.834

Product parameter
Data sheet

Product parameter

Part Number	5786766-1	Manufacturer	TE Connectivity AMP Connectors
Description	CONN RCPT MINI DIN 7P R/A SPCL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	46873 pcs	Data sheet	5786766
Category	Connectors, Interconnects	Voltage - Rated	30VDC
Type Attributes	-	Termination	Solder
Shell Size - Insert (Convert From)	Thermoplastic	Shell Material, Finish	-
Series	-	RoHS Status	Tube
Operating Temperature	-55°C ~ 105°C	Number of Positions	7
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Manufacturer Part Number	5786766-1
Large Diameter Supplied	Mini DIN	Features	Board Lock, Shielded
Expanded Description	7 Position Circular Connector Receptacle, Female Sockets Solder Gold	Description	CONN RCPT MINI DIN 7P R/A SPCL
Current Rating	1A	Current - Max/Contact	Push-Pull
Contact Material	Keyed	Contact Finish Thickness	Gold
Connector Type	Receptacle, Female Sockets	Cable Diameter	30µin (0.76µm)
