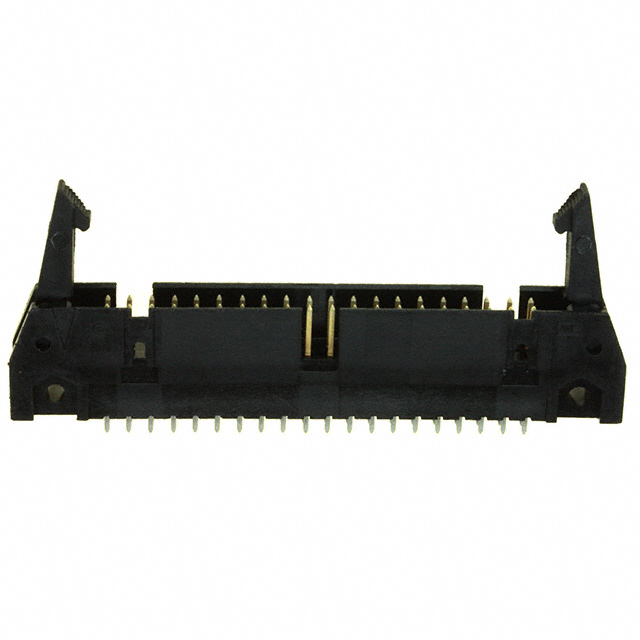

499922-9
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 499922-9 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 499922-9 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 499922-9 |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |
| Description | CONN HEADER VERT 40POS .100 15AU |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Reference Price (In US Dollars) | 288 pcs | ||||
|---|---|---|---|---|---|
| $1.916 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 499922-9 | Manufacturer | TE Connectivity AMP Connectors |
|---|---|---|---|
| Description | CONN HEADER VERT 40POS .100 15AU | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Quantity Available | 19772 pcs | Data sheet | 499922 |
| Category | Connectors, Interconnects | Voltage - DC Spark Over (Nom) | - |
| Type Attributes | - | Termination | Solder |
| Style | Board to Cable/Wire | Stacking Direction | Male Pin |
| Shrouding | 0.100" (2.54mm) | Shield Termination | Square |
| Series | AMP-Latch | Row Spacing - Mating | Shrouded - 4 Wall |
| RoHS Status | Tray | Ripple Current - Low Frequency | - |
| Pitch - Connector | 250VAC | Overall Contact Length | 0.110" (2.79mm) |
| Other Names | 499922-9-ND AHK40G |
Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 40 |
| Number of Contacts | 100µin (2.54µm) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | All | Manufacturer Standard Lead Time | 13 Weeks |
| Manufacturer Part Number | 499922-9 | Length - Post (Mating) | - |
| Insulation Material | Tin-Lead | Insulation Height | 0.639" (16.23mm) |
| Features | Keying Slot, Mounting Flange | Expanded Description | 40 Positions Header Connector 0.100" (2.54mm) Through Hole Gold |
| Description | CONN HEADER VERT 40POS .100 15AU | Current Rating | 1A |
| Current - Max/Contact | Latch Lock/Eject Hooks, Long | Contact Length - Post | 0.240" (6.10mm) |
| Contact Length - Mating | 0.100" (2.54mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | Gold or Gold-Palladium | Contact Finish - Post | 15µin (0.38µm) |
| Contact Finish - Mating | 0.549" (13.94mm) | Connector Type | Header |
| Actual Diameter | Black |
