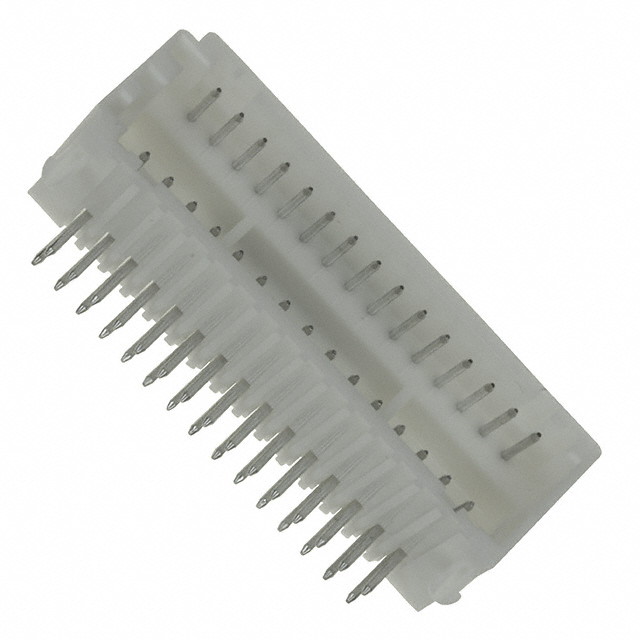

3-292138-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-292138-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-292138-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3-292138-0 |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |
| Description | CONN HEADER 30POS DUAL R/A TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10080 pcs | ||||
|---|---|---|---|---|---|
| $0.333 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3-292138-0 | Manufacturer | TE Connectivity AMP Connectors |
|---|---|---|---|
| Description | CONN HEADER 30POS DUAL R/A TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61501 pcs | Data sheet | 292138 Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Stacking Direction | Male Pin | Shrouding | 0.079" (2.00mm) |
| Series | CT | Row Spacing - Mating | Shrouded |
| RoHS Status | Tray | Other Names | A99719 |
| Number of Rows | 2 | Number of Positions | 30 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | All | Manufacturer Standard Lead Time | 14 Weeks |
| Manufacturer Part Number | 3-292138-0 | Features | Board Lock |
| Expanded Description | 30 Positions Header Connector 0.079" (2.00mm) Through Hole, Right Angle Tin | Description | CONN HEADER 30POS DUAL R/A TIN |
| Current - Max/Contact | - | Contact Length - Post | 0.185" (4.70mm) |
| Contact Length - Mating | 0.256" (6.50mm) | Contact Finish Thickness - Mating | Tin |
| Contact Finish - Post | - | Connector Type | Header |
| Actual Diameter | Natural |
