146315-1

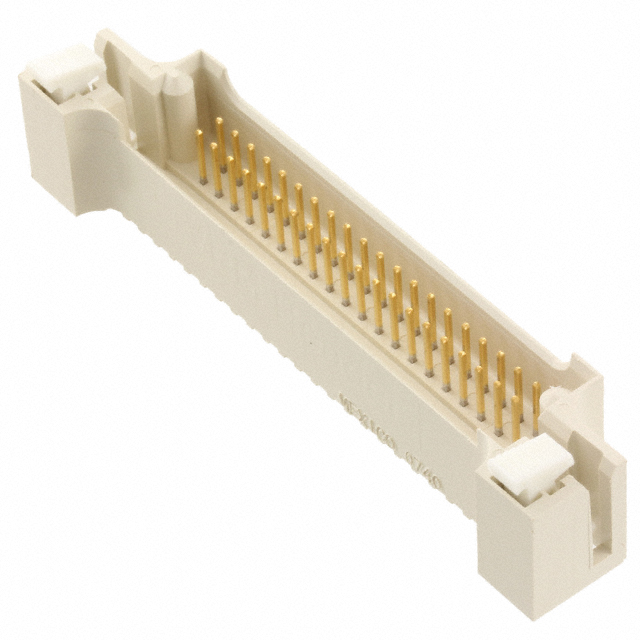

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 146315-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 146315-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 146315-1 |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |
| Description | CONN HEADER VERT 40POS .100 30AU |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.833 | $1.758 | $1.538 | $1.465 | ||
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.282 | $1.245 | $1.062 | $0.989 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 146315-1 | Manufacturer | TE Connectivity AMP Connectors |
|---|---|---|---|
| Description | CONN HEADER VERT 40POS .100 30AU | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 31001 pcs | Data sheet | 146315 |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | AMPMODU Mod II | RoHS Status | Bulk |
| Other Names | 146315-1-ND A112213 |
Number of Rows | 2 |
| Number of Positions | 40 | Number of Conductors | 0.100" (2.54mm) |
| Mounting Type | Through Hole | Molding Height Above Board | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | All |
| Manufacturer Standard Lead Time | 12 Weeks | Manufacturer Part Number | 146315-1 |
| Features | Ejector Latches | Expanded Description | 40 Position Header BTB Connector Gold 0.100" (2.54mm) Through Hole |
| Description | CONN HEADER VERT 40POS .100 30AU | Contact Mating Length | 0.550" (13.97mm) |
| Contact Finish Thickness | Gold | Connector Type | Shrouded |
| Color | White | Cable Pitch | - |
| Cable Diameter | 30µin (0.76µm) | Adapter Type | 0.100" (2.54mm) |
