102156-3

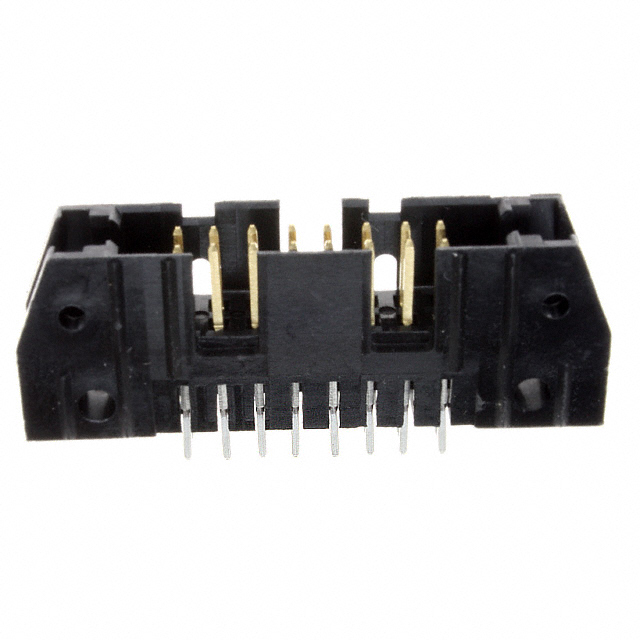

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 102156-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 102156-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 102156-3 |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |
| Description | CONN HEADER VERT 16POS .100 GOLD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 910 pcs | ||||
|---|---|---|---|---|---|
| $0.587 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 102156-3 | Manufacturer | TE Connectivity AMP Connectors |
|---|---|---|---|
| Description | CONN HEADER VERT 16POS .100 GOLD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 57966 pcs | Data sheet | 102156 |
| Category | Connectors, Interconnects | Voltage - DC Spark Over (Nom) | - |
| Type Attributes | - | Termination | Solder |
| Style | Board to Cable/Wire | Stacking Direction | Male Pin |
| Shrouding | 0.100" (2.54mm) | Shield Termination | Square |
| Series | AMP-Latch | Row Spacing - Mating | Shrouded - 4 Wall |
| RoHS Status | Bulk | Ripple Current - Low Frequency | - |
| Pitch - Connector | 250VAC | Overall Contact Length | 0.155" (3.94mm) |
| Other Names | 102156-3-ND AHJ16K |
Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 16 |
| Number of Contacts | 100µin (2.54µm) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | All | Manufacturer Standard Lead Time | 13 Weeks |
| Manufacturer Part Number | 102156-3 | Length - Post (Mating) | - |
| Insulation Material | Tin-Lead | Insulation Height | 0.684" (17.37mm) |
| Features | Keying Slot, Mounting Flange | Expanded Description | 16 Positions Header Connector 0.100" (2.54mm) Through Hole Gold or Gold-Palladium |
| Description | CONN HEADER VERT 16POS .100 GOLD | Current Rating | 1A per Contact |
| Current - Max/Contact | Push-Pull | Contact Length - Post | 0.240" (6.10mm) |
| Contact Length - Mating | 0.100" (2.54mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | Gold or Gold-Palladium | Contact Finish - Post | 30µin (0.76µm) |
| Contact Finish - Mating | 0.549" (13.94mm) | Connector Type | Header |
| Actual Diameter | Black |
