SZESD7016MUTAG

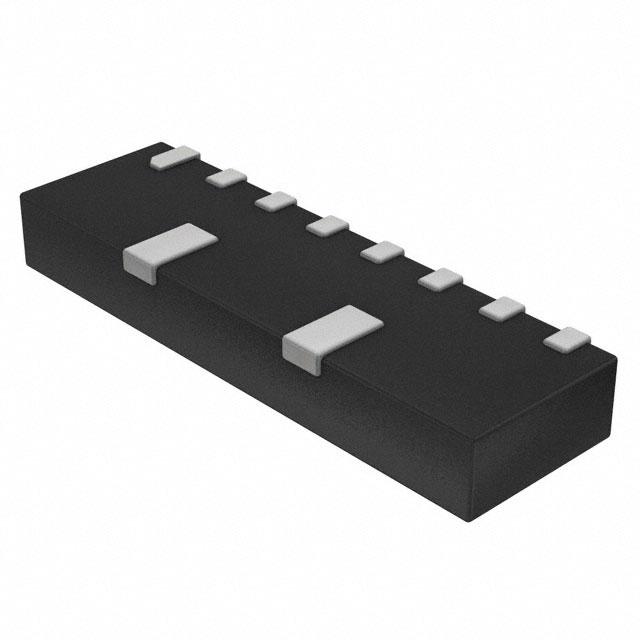

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SZESD7016MUTAG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SZESD7016MUTAG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SZESD7016MUTAG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | TVS DIODE 5VWM 10VC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.236 | $0.207 | $0.159 | $0.126 | $0.101 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SZESD7016MUTAG | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | TVS DIODE 5VWM 10VC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 225123 pcs | Data sheet | ESD7016, SZESD701 |
| Category | Circuit Protection | Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Clamping (Max) @ Ipp | 10V | Voltage - Breakdown (Min) | 5.5V |
| Unidirectional Channels | 8 | Type | Zener |
| Supplier Device Package | 8-UDFN (3.3x1.0) | Series | Automotive, AEC-Q101 |
| Power Line Protection | No | Power - Peak Pulse | - |
| Packaging | Cut Tape (CT) | Package / Case | 8-UFDFN |
| Other Names | SZESD7016MUTAGOSCT | Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) | Capacitance @ Frequency | 0.15pF @ 1MHz |
| Applications | Automotive |
