Home > Products > Integrated Circuits (ICs) > PMIC - Full, Half-Bridge Drivers > STK621-033N-E

STK621-033N-E

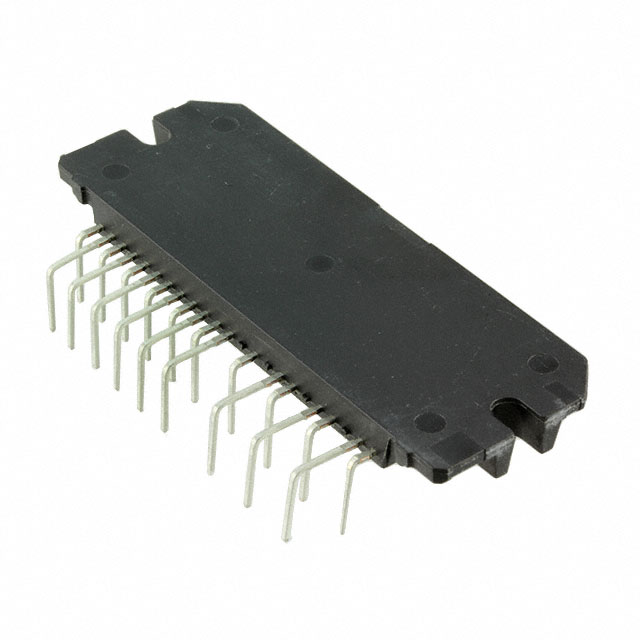

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STK621-033N-E with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	STK621-033N-E
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC MOTOR DRIVER
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5780 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	STK621-033N-E	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC MOTOR DRIVER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5780 pcs	Data sheet	STK621-033N-E
Category	Integrated Circuits (ICs)	Voltage - Supply	12.5 V ~ 17.5 V
Voltage - Load	400V (Max)	Technology	IGBT
Supplier Device Package	23-SIP	Series	-
Rds On (Typ)	-	Packaging	Tube
Package / Case	23-SIP, 19 Leads, Formed Leads	Output Configuration	Half Bridge (3)
Other Names	STK621-033N-E-ND STK621-033N-EOS	Operating Temperature	-20°C ~ 150°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Load Type	Inductive	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	Logic	Features	Auto Restart, Bootstrap Circuit, Status Flag
Fault Protection	Current Limiting, UVLO	Detailed Description	Half Bridge (3) Driver AC Motors IGBT 23-SIP
Current - Peak Output	30A	Current - Output / Channel	15A
Applications	AC Motors
