STK581U3C2D-E

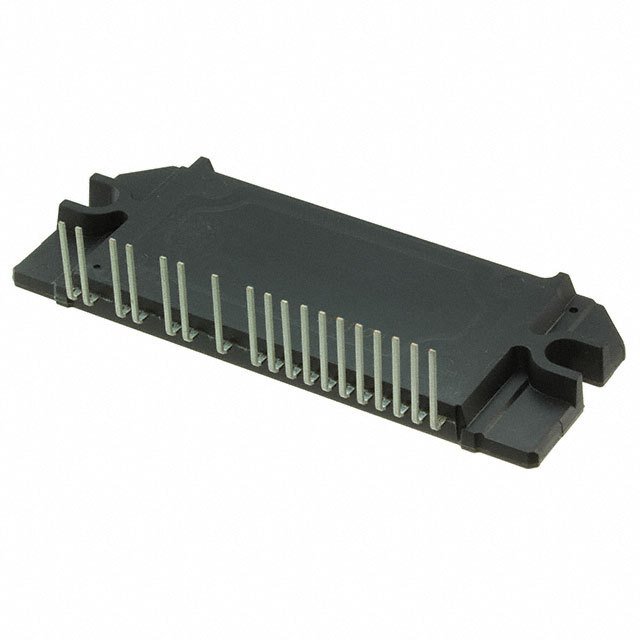

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STK581U3C2D-E with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STK581U3C2D-E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STK581U3C2D-E |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC MOTOR DRIVER 22SIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 14 pcs | 105 pcs | ||
|---|---|---|---|---|---|
| $10.529 | $9.711 | $8.292 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | STK581U3C2D-E | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC MOTOR DRIVER 22SIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3836 pcs | Data sheet | STK581U3C2D-E |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 12.5 V ~ 17.5 V |
| Voltage - Load | 450V (Max) | Technology | IGBT |
| Supplier Device Package | 22-SIP | Series | - |
| Rds On (Typ) | - | Packaging | Tube |
| Package / Case | 22-SIP, 18 Leads, Formed Leads | Output Configuration | Half Bridge (3) |
| Other Names | STK581U3C2D-EOS | Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Load Type | Inductive | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | Logic | Features | Bootstrap Circuit, Status Flag |
| Fault Protection | Current Limiting, UVLO | Detailed Description | Half Bridge (3) Driver AC Motors IGBT 22-SIP |
| Current - Peak Output | 45A | Current - Output / Channel | 30A |
| Applications | AC Motors |
