SS3003CH-TL-W

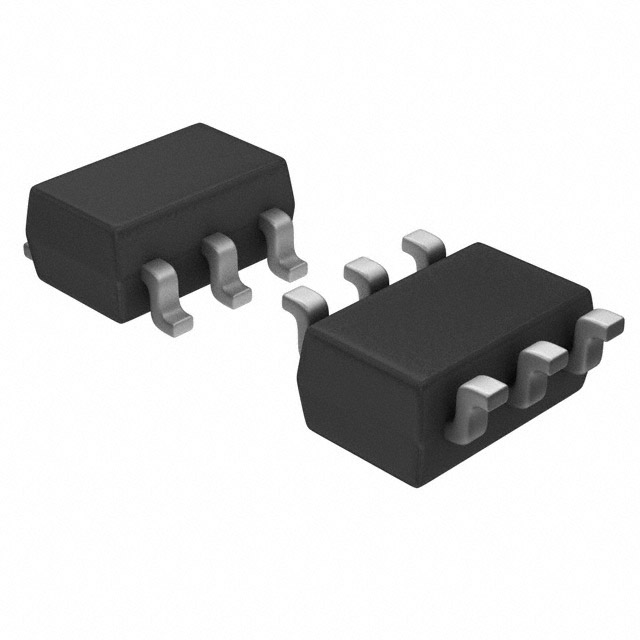

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SS3003CH-TL-W with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SS3003CH-TL-W with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SS3003CH-TL-W |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | DIODE SCHOTTKY 30V 3A 6CPH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.167 | $0.144 | $0.108 | $0.085 | $0.065 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SS3003CH-TL-W | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | DIODE SCHOTTKY 30V 3A 6CPH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 299825 pcs | Data sheet | SS3003CH |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 420mV @ 3A |
| Voltage - DC Reverse (Vr) (Max) | 30V | Supplier Device Package | 6-CPH |
| Speed | Fast Recovery = 200mA (Io) | Series | - |
| Reverse Recovery Time (trr) | 20ns | Packaging | Cut Tape (CT) |
| Package / Case | SC-74, SOT-457 | Other Names | SS3003CH-TL-WOSCT |
| Operating Temperature - Junction | -55°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Diode Type | Schottky |
| Detailed Description | Diode Schottky 30V 3A Surface Mount 6-CPH | Current - Reverse Leakage @ Vr | 1.4mA @ 15V |
| Current - Average Rectified (Io) | 3A | Capacitance @ Vr, F | 880pF @ 0V, 1MHz |
