SBS822-TL-W

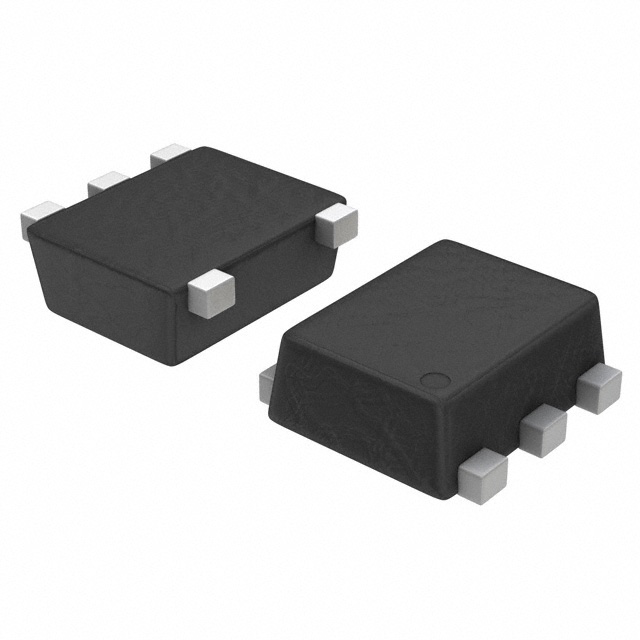

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SBS822-TL-W with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SBS822-TL-W with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SBS822-TL-W |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | DIODE ARRAY SCHOTTKY 20V 5MCPH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | 30000 pcs | |
|---|---|---|---|---|---|
| $0.066 | $0.062 | $0.057 | $0.057 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SBS822-TL-W | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | DIODE ARRAY SCHOTTKY 20V 5MCPH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 388424 pcs | Data sheet | SBS822 |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 460mV @ 1A |
| Voltage - DC Reverse (Vr) (Max) | 20V | Supplier Device Package | 5-MCPH |
| Speed | Fast Recovery = 200mA (Io) | Series | - |
| Reverse Recovery Time (trr) | 10ns | Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD (5 Leads), Flat Lead | Other Names | SBS822-TL-W-ND SBS822-TL-WOSTR |
| Operating Temperature - Junction | -55°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Diode Type | Schottky |
| Diode Configuration | 2 Independent | Detailed Description | Diode Array 2 Independent Schottky 20V 1A Surface Mount 6-SMD (5 Leads), Flat Lead |
| Current - Reverse Leakage @ Vr | 110µA @ 10V | Current - Average Rectified (Io) (per Diode) | 1A |
