S1GHE

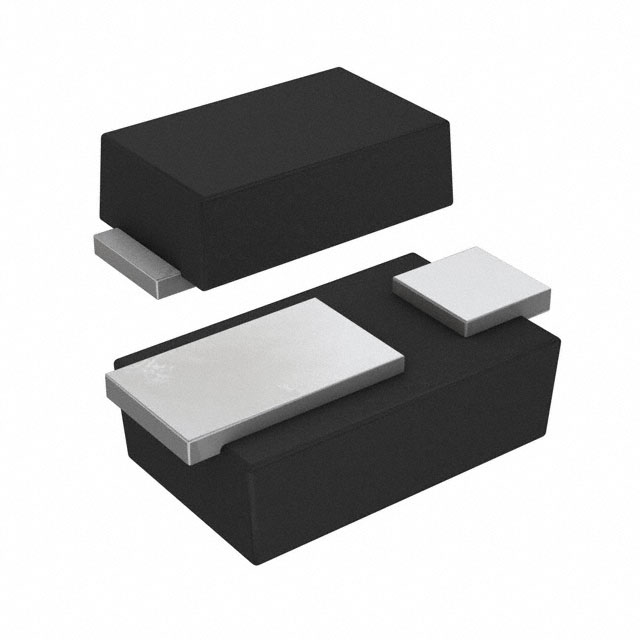

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S1GHE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy S1GHE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | S1GHE |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | DIODE GEN PURP 400V 1A SOD323HE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | 30000 pcs | 75000 pcs |
|---|---|---|---|---|---|
| $0.032 | $0.028 | $0.025 | $0.024 | $0.021 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | S1GHE | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | DIODE GEN PURP 400V 1A SOD323HE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1112457 pcs | Data sheet | S1GHE, S1JHE Datasheet |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 1.1V @ 1A |
| Voltage - DC Reverse (Vr) (Max) | 400V | Supplier Device Package | SOD-323HE |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Series | Automotive, AEC-Q101 |
| Reverse Recovery Time (trr) | 782ns | Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Flat Lead | Other Names | S1GHETR |
| Operating Temperature - Junction | -55°C ~ 175°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Diode Type | Standard |
| Detailed Description | Diode Standard 400V 1A Surface Mount SOD-323HE | Current - Reverse Leakage @ Vr | 1µA @ 400V |
| Current - Average Rectified (Io) | 1A | Capacitance @ Vr, F | 3pF @ 4V, 1MHz |
