NUF9002FCT1G

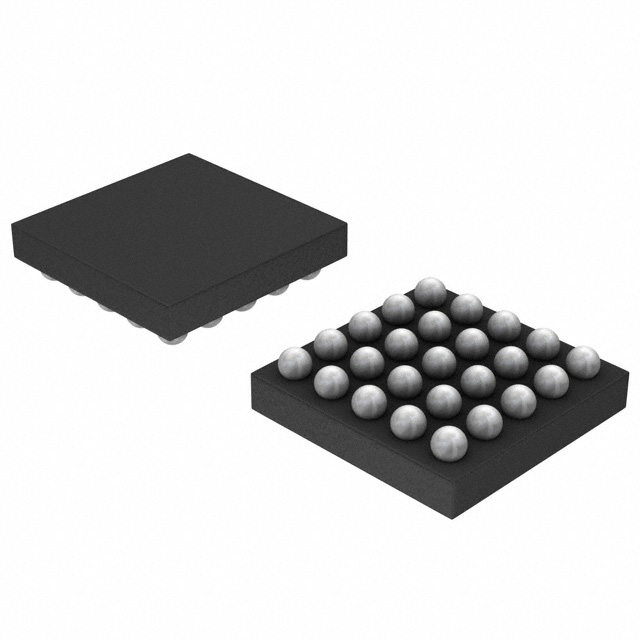

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NUF9002FCT1G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NUF9002FCT1G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NUF9002FCT1G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | FILTER RC(PI) 100 OHM/28PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | NUF9002FCT1G | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | FILTER RC(PI) 100 OHM/28PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4292 pcs | Data sheet | NUF9002FC |
| Category | Filters | Voltage - Rated | - |
| Values | R = 100 Ohms, C = 28pF (Total) | Type | Low Pass |
| Technology | RC (Pi) | Size / Dimension | 0.104" L x 0.104" W (2.65mm x 2.65mm) |
| Series | - | Resistance - Channel (Ohms) | 100 |
| Packaging | Tape & Reel (TR) | Package / Case | 25-UFBGA, FCBGA |
| Other Names | NUF9002FCT1G-ND NUF9002FCT1GOSTR |
Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 10 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height | 0.026" (0.65mm) | Filter Order | 2nd |
| ESD Protection | Yes | Detailed Description | RC (Pi) EMI Filter 2nd Order Low Pass 10 Channel R = 100 Ohms, C = 28pF (Total) 25-UFBGA, FCBGA |
| Center / Cutoff Frequency | 110MHz (Cutoff) | Attenuation Value | -25dB @ 900MHz ~ 3GHz |
| Applications | Data Lines for Mobile Devices |
