NTLJD3119CTAG

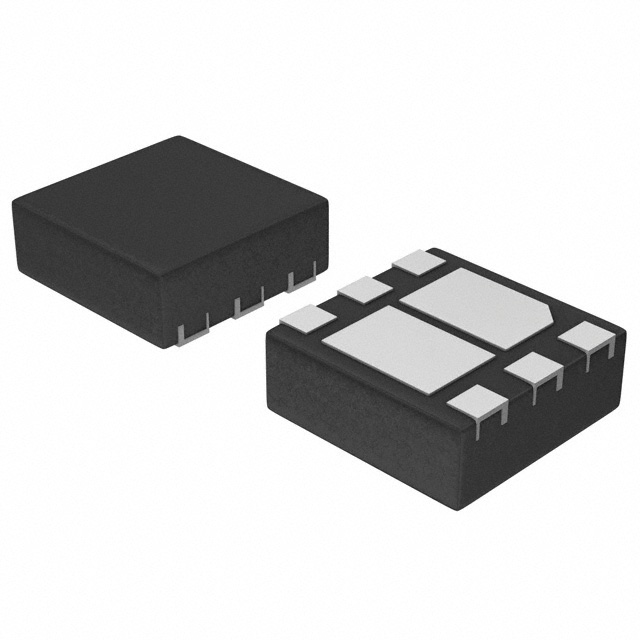

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NTLJD3119CTAG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NTLJD3119CTAG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NTLJD3119CTAG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N/P-CH 20V 6WDFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | NTLJD3119CTAG | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N/P-CH 20V 6WDFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5274 pcs | Data sheet | NTLJD3119C |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | 6-WDFN (2x2) | Series | µCool™ |
| Rds On (Max) @ Id, Vgs | 65 mOhm @ 3.8A, 4.5V | Power - Max | 710mW |
| Packaging | Tape & Reel (TR) | Package / Case | 6-WDFN Exposed Pad |
| Other Names | NTLJD3119CTAG-ND NTLJD3119CTAGOSTR |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 271pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 3.7nC @ 4.5V | FET Type | N and P-Channel |
| FET Feature | Logic Level Gate | Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | Mosfet Array N and P-Channel 20V 2.6A, 2.3A 710mW Surface Mount 6-WDFN (2x2) | Current - Continuous Drain (Id) @ 25°C | 2.6A, 2.3A |
| Base Part Number | NTLJD3119C |
