NTHD3100CT1

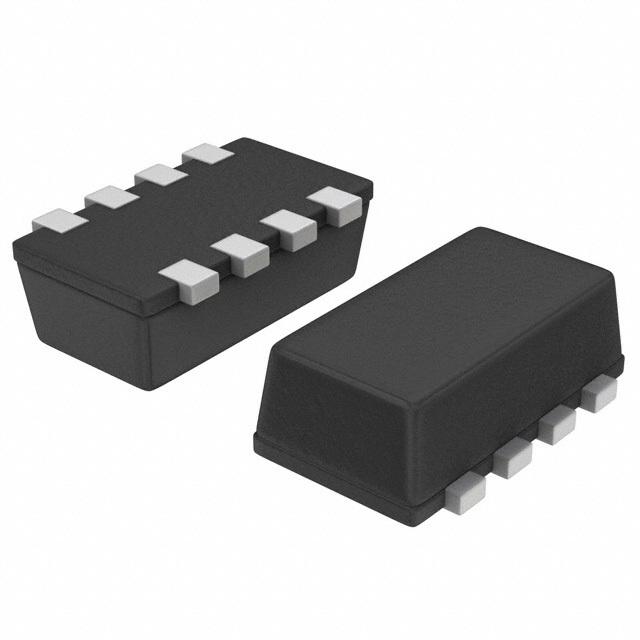

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NTHD3100CT1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NTHD3100CT1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NTHD3100CT1 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N/P-CH 20V CHIPFET |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | NTHD3100CT1 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N/P-CH 20V CHIPFET | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4491 pcs | Data sheet | NTHD3100C |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Supplier Device Package | ChipFET™ | Series | - |
| Rds On (Max) @ Id, Vgs | 80 mOhm @ 2.9A, 4.5V | Power - Max | 1.1W |
| Packaging | Tape & Reel (TR) | Package / Case | 8-SMD, Flat Lead |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 165pF @ 10V | Gate Charge (Qg) (Max) @ Vgs | 2.3nC @ 4.5V |
| FET Type | N and P-Channel | FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V | Detailed Description | Mosfet Array N and P-Channel 20V 2.9A, 3.2A 1.1W Surface Mount ChipFET™ |
| Current - Continuous Drain (Id) @ 25°C | 2.9A, 3.2A | Base Part Number | NTHD3100C |
