NTD78N03-035

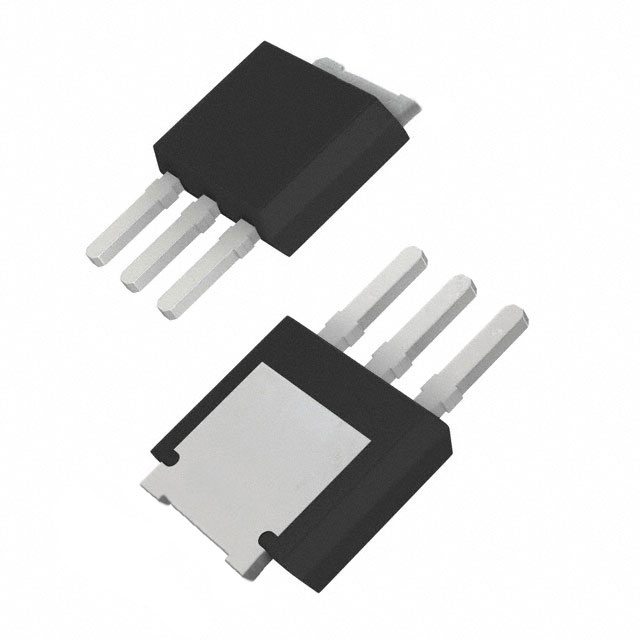

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NTD78N03-035 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NTD78N03-035 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NTD78N03-035 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 25V 11.4A IPAK |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | NTD78N03-035 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 25V 11.4A IPAK | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5154 pcs | Data sheet | NTD78N03 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | I-PAK | Series | - |
| Rds On (Max) @ Id, Vgs | 6 mOhm @ 78A, 10V | Power Dissipation (Max) | 1.4W (Ta), 64W (Tc) |
| Packaging | Tube | Package / Case | TO-251-3 Stub Leads, IPak |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 2250pF @ 12V | Gate Charge (Qg) (Max) @ Vgs | 35nC @ 4.5V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Drain to Source Voltage (Vdss) | 25V |
| Detailed Description | N-Channel 25V 11.4A (Ta), 78A (Tc) 1.4W (Ta), 64W (Tc) Through Hole I-PAK | Current - Continuous Drain (Id) @ 25°C | 11.4A (Ta), 78A (Tc) |
