NTD6415ANT4G

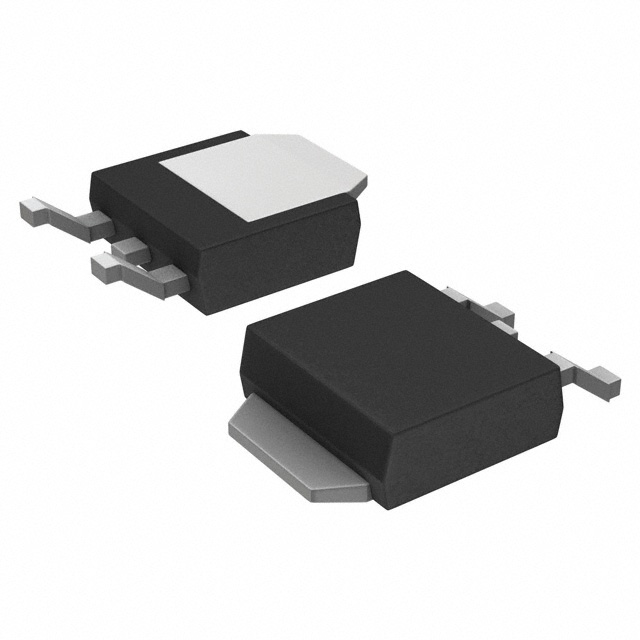

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NTD6415ANT4G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NTD6415ANT4G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NTD6415ANT4G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 100V 23A DPAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | NTD6415ANT4G | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 100V 23A DPAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4794 pcs | Data sheet | NTD6415AN |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | DPAK | Series | - |
| Rds On (Max) @ Id, Vgs | 55 mOhm @ 23A, 10V | Power Dissipation (Max) | 83W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Other Names | NTD6415ANT4G-ND NTD6415ANT4GOSTR |
Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 700pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 29nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 100V | Detailed Description | N-Channel 100V 23A (Tc) 83W (Tc) Surface Mount DPAK |
| Current - Continuous Drain (Id) @ 25°C | 23A (Tc) |
