NST3946DP6T5G

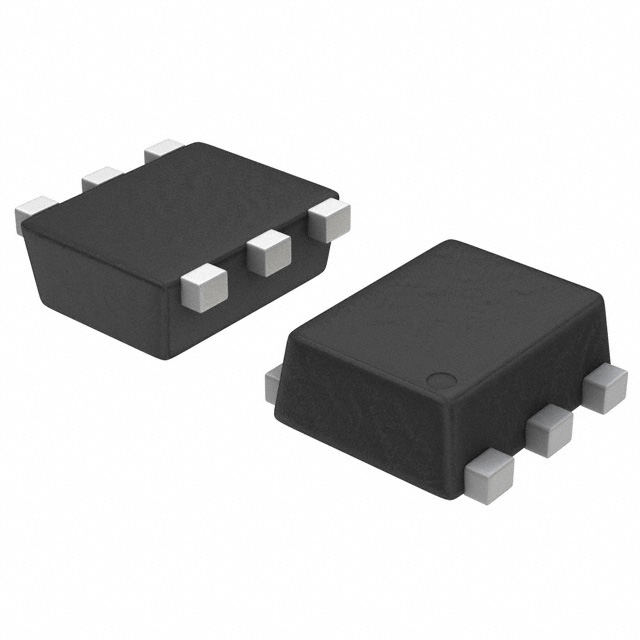

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NST3946DP6T5G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NST3946DP6T5G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NST3946DP6T5G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | TRANS NPN/PNP 40V 0.2A SOT963 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.165 | $0.124 | $0.07 | $0.046 | $0.036 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | NST3946DP6T5G | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | TRANS NPN/PNP 40V 0.2A SOT963 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 659648 pcs | Data sheet | NST3946DP6T5G |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 40V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 5mA, 50mA / 400mV @ 5mA, 50mA | Transistor Type | NPN, PNP |
| Supplier Device Package | SOT-963 | Series | - |
| Power - Max | 350mW | Packaging | Cut Tape (CT) |
| Package / Case | SOT-963 | Other Names | NST3946DP6T5GOSCT |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 26 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Transition | 200MHz, 250MHz |
| Detailed Description | Bipolar (BJT) Transistor Array NPN, PNP 40V 200mA 200MHz, 250MHz 350mW Surface Mount SOT-963 | DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 1V |
| Current - Collector Cutoff (Max) | - | Current - Collector (Ic) (Max) | 200mA |
