Home > Products > Circuit Protection > TVS - Diodes > NSPM5131MUTBG

NSPM5131MUTBG

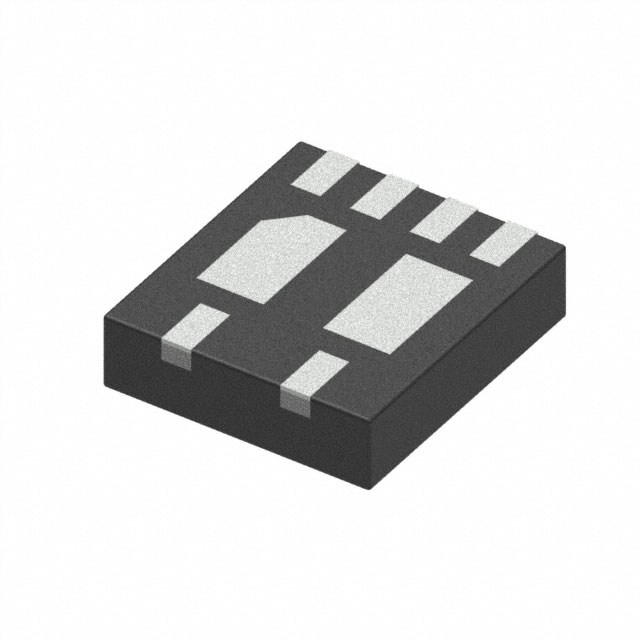

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NSPM5131MUTBG with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NSPM5131MUTBG
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	TVS DIODE 13.5V 21.5V 6UDFN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 254026 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$0.189	$0.163	$0.122	$0.096	$0.074

Product parameter
Data sheet

Product parameter

Part Number	NSPM5131MUTBG	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	TVS DIODE 13.5V 21.5V 6UDFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	254026 pcs	Data sheet	NSPM5131
Category	Circuit Protection	Voltage - Reverse Standoff (Typ)	13.5V (Max)
Voltage - Clamping (Max) @ Ipp	21.5V	Voltage - Breakdown (Min)	13.6V
Unidirectional Channels	1	Type	Zener
Supplier Device Package	6-UDFN (1.8x2)	Series	-
Power Line Protection	No	Power - Peak Pulse	-
Packaging	Cut Tape (CT)	Package / Case	6-UFDFN Exposed Pad
Other Names	NSPM5131MUTBGOSCT	Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	17 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Current - Peak Pulse (10/1000µs)	160A (8/20µs)	Capacitance @ Frequency	-
Applications	General Purpose
