NGTB30N120FL2WG

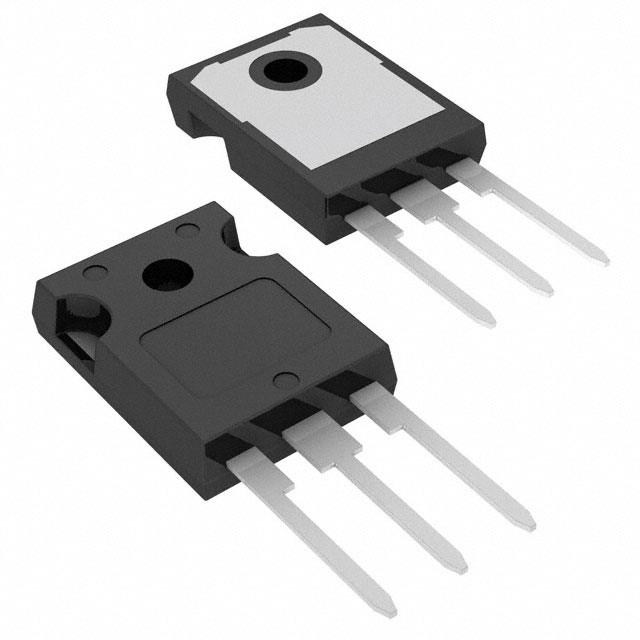

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NGTB30N120FL2WG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NGTB30N120FL2WG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NGTB30N120FL2WG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IGBT 1200V 60A 452W TO247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 30 pcs | 120 pcs | 510 pcs | |
|---|---|---|---|---|---|
| $3.551 | $2.913 | $2.628 | $2.202 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | NGTB30N120FL2WG | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IGBT 1200V 60A 452W TO247 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13857 pcs | Data sheet | NGTB30N120FL2WG |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 30A | Test Condition | 600V, 30A, 10 Ohm, 15V |
| Td (on/off) @ 25°C | 98ns/210ns | Switching Energy | 2.6mJ (on), 700µJ (off) |
| Supplier Device Package | TO-247 | Series | - |
| Reverse Recovery Time (trr) | 240ns | Power - Max | 452W |
| Packaging | Tube | Package / Case | TO-247-3 |
| Other Names | NGTB30N120FL2WGOS | Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Standard | IGBT Type | Trench Field Stop |
| Gate Charge | 220nC | Detailed Description | IGBT Trench Field Stop 1200V 60A 452W Through Hole TO-247 |
| Current - Collector Pulsed (Icm) | 120A | Current - Collector (Ic) (Max) | 60A |
