NDFPD1N150CG

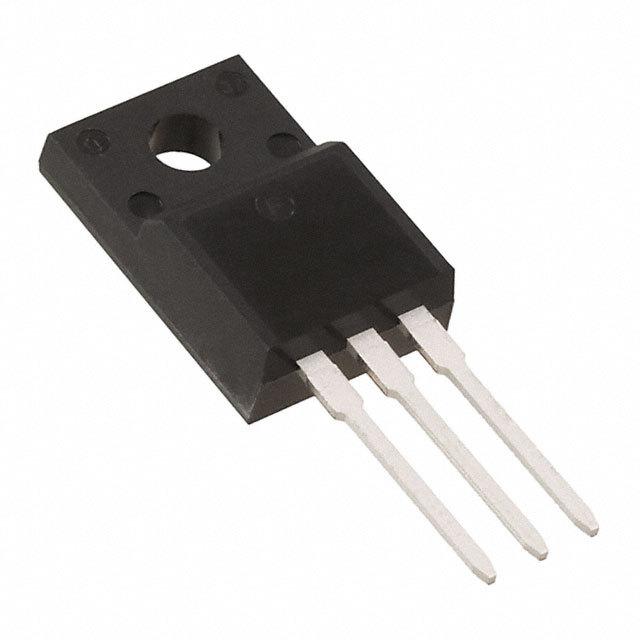

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NDFPD1N150CG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NDFPD1N150CG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NDFPD1N150CG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 1500V 100MA TO220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 50 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.626 | $0.53 | $0.452 | $0.371 | $0.308 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | NDFPD1N150CG | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 1500V 100MA TO220 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63680 pcs | Data sheet | NDFPD1N150C |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | - |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-220-3 | Series | - |
| Rds On (Max) @ Id, Vgs | 150 Ohm @ 50mA, 10V | Power Dissipation (Max) | 2W (Ta), 20W (Tc) |
| Packaging | Tube | Package / Case | TO-220-3 Full Pack |
| Other Names | NDFPD1N150CGOS | Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 80pF @ 30V | Gate Charge (Qg) (Max) @ Vgs | 4.2nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 1500V |
| Detailed Description | N-Channel 1500V 100mA (Ta) 2W (Ta), 20W (Tc) Through Hole TO-220-3 | Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) |
