Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > NCV8842PWGEVB

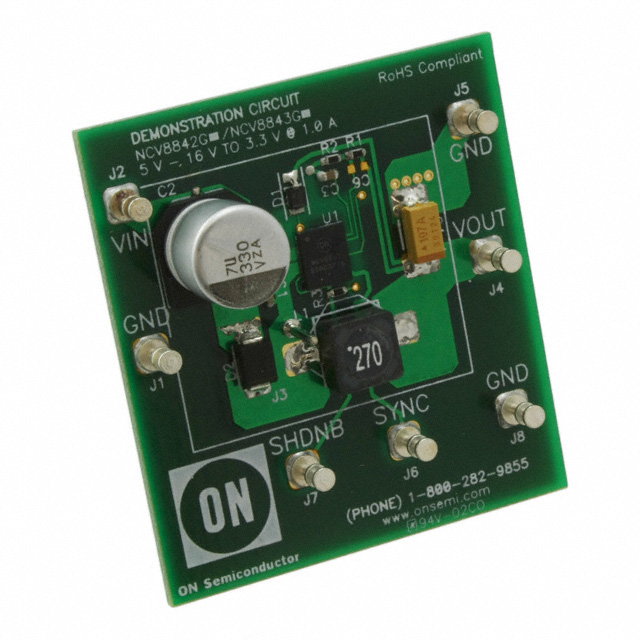

NCV8842PWGEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCV8842PWGEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NCV8842PWGEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCV8842PWG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1345 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$26.974

Product parameter
Data sheet

Product parameter

Part Number	NCV8842PWGEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCV8842PWG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1345 pcs	Data sheet	NCV8842 NCV8842 SOIC16 EVB Test Procedure NCV8842PWGEVB
Category	Development Boards, Kits, Programmers	Voltage - Output	2.5V, 3.3V, 5V
Voltage - Input	7 V ~ 16 V	Utilized IC / Part	NCV8842
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Other Names	NCV8842PWGEVBOS	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	170kHz	Detailed Description	NCV8842 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	1.5A	Board Type	Fully Populated
