Home > Products > Development Boards, Kits, Programmers > Evaluation and Demonstration Boards and Kits > NCS2563DGEVB

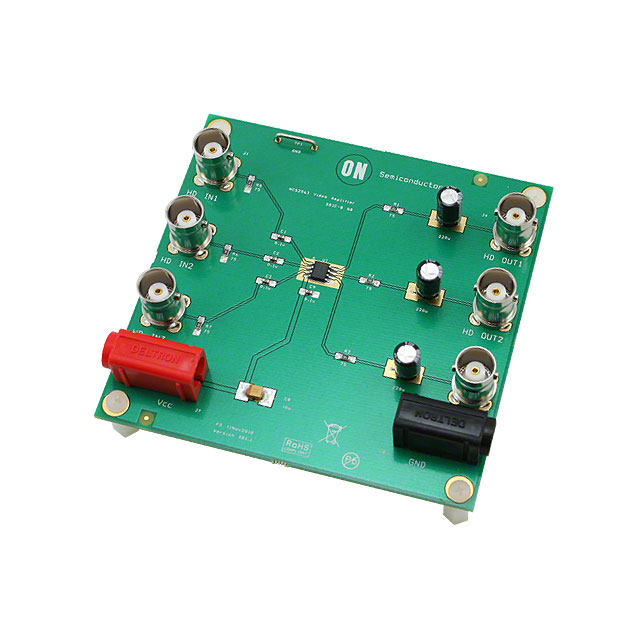

NCS2563DGEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCS2563DGEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NCS2563DGEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	BOARD EVALUATION NCS2563D
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1111 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$33.439

Product parameter
Data sheet

Product parameter

Part Number	NCS2563DGEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	BOARD EVALUATION NCS2563D	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1111 pcs	Data sheet	NCS2563
Category	Development Boards, Kits, Programmers	Utilized IC / Part	NCS2563
Type	Video	Supplied Contents	Board(s)
Series	-	Secondary Attributes	AC- or DC-Coupled Inputs and Outputs
Primary Attributes	Gain 6dB, Reconstruction Filters	Other Names	NCS2563DGEVBOS
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Function	Amplifier, Triple	Embedded	No
Detailed Description	NCS2563 Amplifier, Triple Video Evaluation Board
