Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - Linear Voltage Regulators > NCP59301DS00GEVB

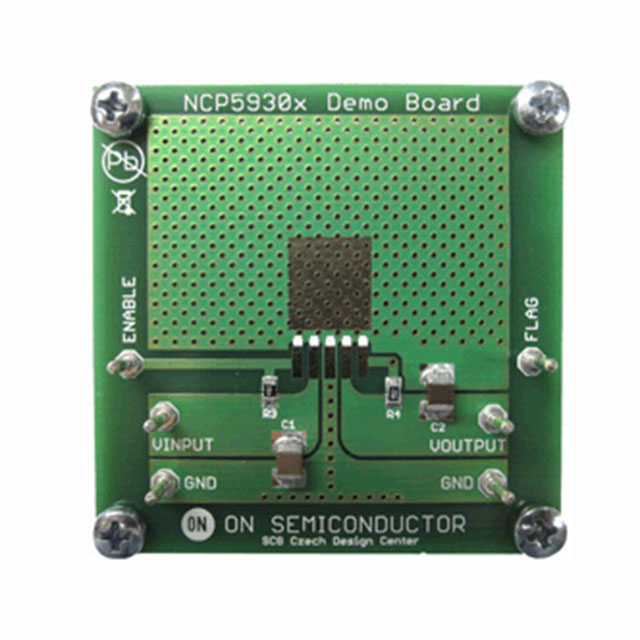

NCP59301DS00GEVB

NCP59301DS00GEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCP59301DS00GEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NCP59301DS00GEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD NCP59301DS00G
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2172 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$15.576

Product parameter
Data sheet

Product parameter

Part Number	NCP59301DS00GEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD NCP59301DS00G	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2172 pcs	Data sheet	NCP59301DS00GEVB Test Procedure NCP59300, NCV59300 Series
Category	Development Boards, Kits, Programmers	Voltage - Output	-
Voltage - Input	2.24 V ~ 13.5 V	Utilized IC / Part	NCP59301
Supplied Contents	Board(s)	Series	-
Regulator Type	Positive Fixed	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	NCP59301 1 - Single Channels per IC Positive Fixed Linear Voltage Regulator Evaluation Board
Current - Output	3A	Channels per IC	1 - Single
Board Type	Fully Populated
