Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > NCP5810DGEVB

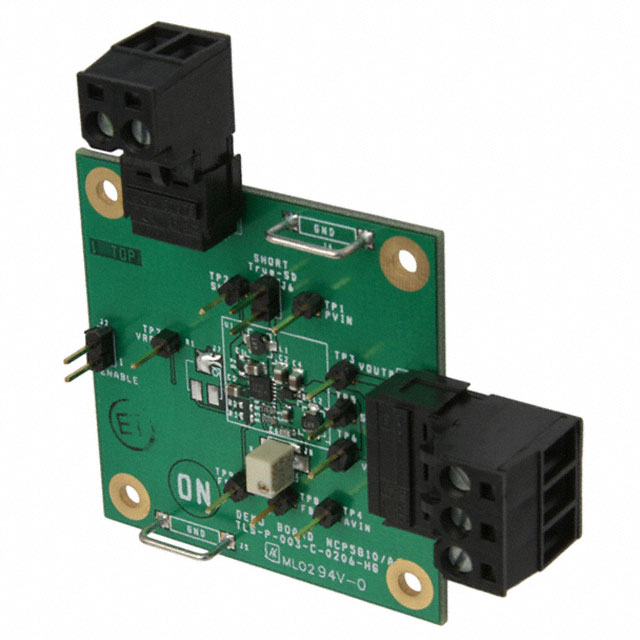

NCP5810DGEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCP5810DGEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NCP5810DGEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCP5810DG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4101 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	NCP5810DGEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCP5810DG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4101 pcs	Data sheet	NCP5810D
Category	Development Boards, Kits, Programmers	Voltage - Output	4.6V, -5V
Voltage - Input	3.7V	Utilized IC / Part	NCP5810
Supplied Contents	Board(s)	Series	-
Regulator Topology	Inverting	Power - Output	1W
Outputs and Type	2, Non-Isolated	Other Names	NCP5810DGEVBOS
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Main Purpose	DC/DC, Positive and Negative
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Switching	1.75MHz
Detailed Description	NCP5810 - DC/DC, Positive and Negative 2, Non-Isolated Outputs Evaluation Board	Current - Output	-
Board Type	Fully Populated
