NCP5030MTTXG

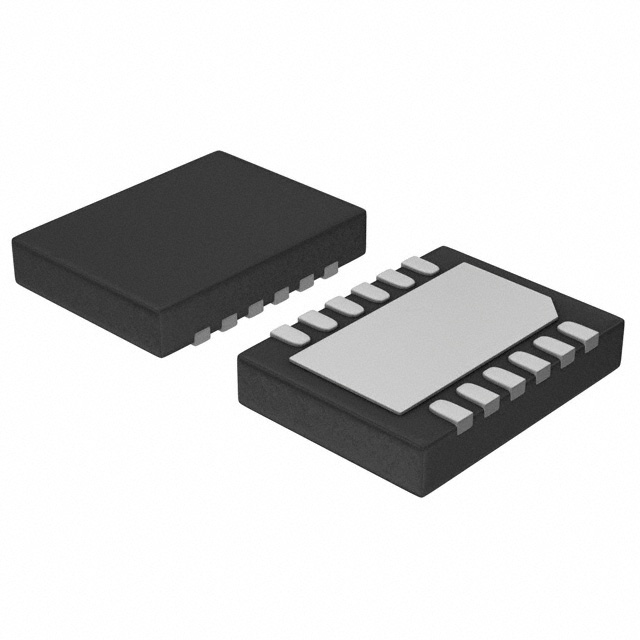

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCP5030MTTXG with confidence from Components-World.HK, 1 Year Warranty
Dowload NCP5030MTTXG Details in PDFSee Product Specifications for product details.
Buy NCP5030MTTXG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NCP5030MTTXG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC LED DRIVER RGLTR DIM 12WDFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | |||
|---|---|---|---|---|---|
| $0.414 | $0.398 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | NCP5030MTTXG | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC LED DRIVER RGLTR DIM 12WDFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 77890 pcs | Data sheet | NCP5030 |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V | Voltage - Output | 2.2 V ~ 5.5 V |
| Type | DC DC Regulator | Topology | Step-Down (Buck), Step-Up (Boost) |
| Supplier Device Package | 12-WDFN (4x3) | Series | - |
| Packaging | Tape & Reel (TR) | Package / Case | 12-WFDFN Exposed Pad |
| Other Names | NCP5030MTTXG-ND NCP5030MTTXGOSTR |
Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Outputs | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 23 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Yes |
| Frequency | 700kHz | Dimming | PWM |
| Detailed Description | LED Driver IC 1 Output DC DC Regulator Step-Down (Buck), Step-Up (Boost) PWM Dimming 900mA 12-WDFN (4x3) | Current - Output / Channel | 900mA |
| Base Part Number | NCP5030 | Applications | - |
