NCP45541IMNTWG-H

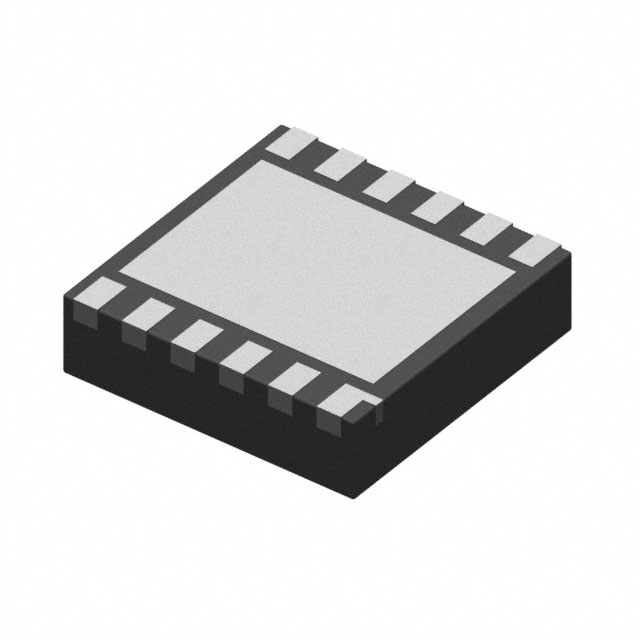

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCP45541IMNTWG-H with confidence from Components-World.HK, 1 Year Warranty
Dowload NCP45541IMNTWG-H Details in PDFSee Product Specifications for product details.
Buy NCP45541IMNTWG-H with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NCP45541IMNTWG-H |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC LOAD SWITCH ACT-HI 20A 12DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.393 | $0.352 | $0.274 | $0.226 | $0.179 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | NCP45541IMNTWG-H | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC LOAD SWITCH ACT-HI 20A 12DFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 111873 pcs | Data sheet | NCP45541 |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 3 V ~ 5.5 V |
| Voltage - Load | 0.5 V ~ 13.5 V | Switch Type | General Purpose |
| Supplier Device Package | 12-DFN (3x3) | Series | ecoSWITCH™ |
| Rds On (Typ) | 4.8 mOhm | Ratio - Input:Output | 1:1 |
| Packaging | Cut Tape (CT) | Package / Case | 12-VFDFN Exposed Pad |
| Output Type | N-Channel | Output Configuration | High Side |
| Other Names | NCP45541IMNTWG-HOSCT | Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Outputs | 1 | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | On/Off | Input Type | Non-Inverting |
| Features | Power Good, Slew Rate Controlled | Fault Protection | - |
| Current - Output (Max) | 20A |
