Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > NCP4305LLCGEVB

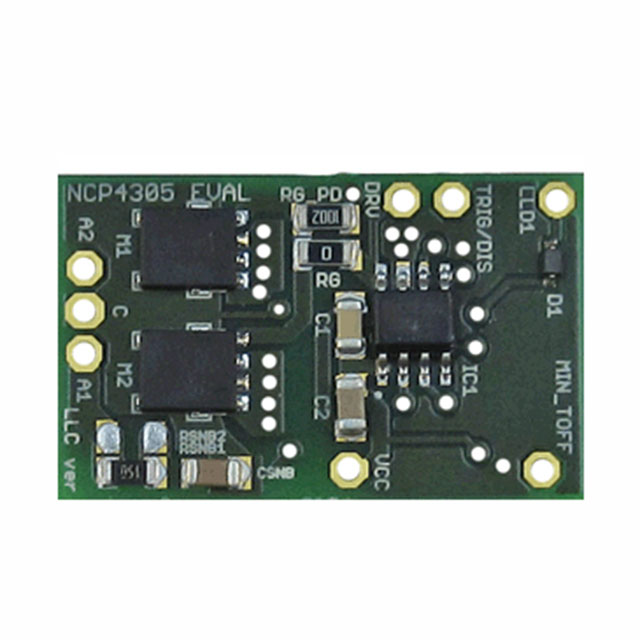

NCP4305LLCGEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCP4305LLCGEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NCP4305LLCGEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD NCP4305LLCG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1548 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$22.792

Product parameter
Data sheet

Product parameter

Part Number	NCP4305LLCGEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD NCP4305LLCG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1548 pcs	Data sheet	NCP4305DGEVB Manual NCP4305 NCP4305 Board Test Procedure
Category	Development Boards, Kits, Programmers	Voltage - Output	-
Voltage - Input	5 V ~ 35 V	Utilized IC / Part	NCP4305
Supplied Contents	Board(s)	Series	-
Regulator Topology	-	Outputs and Type	-
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Main Purpose	AC/DC, Secondary Side
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Switching	-
Detailed Description	NCP4305 AC/DC, Secondary Side Evaluation Board	Current - Output	-
Board Type	Fully Populated
