Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - LED Drivers > NCP3066SCBSTGEVB

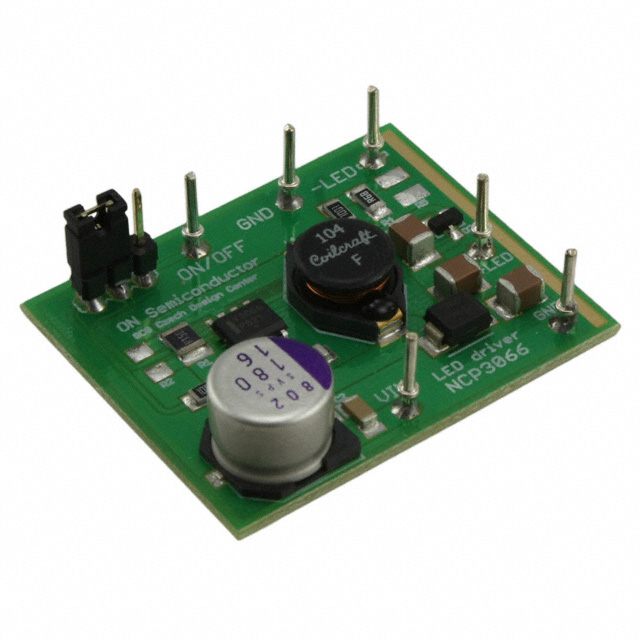

NCP3066SCBSTGEVB

NCP3066SCBSTGEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCP3066SCBSTGEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NCP3066SCBSTGEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCP3066SCBSTG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5473 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	NCP3066SCBSTGEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCP3066SCBSTG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5473 pcs	Data sheet	NCP/NCV3066
Category	Development Boards, Kits, Programmers	Voltage - Output	16V
Voltage - Input	12V	Utilized IC / Part	NCP3066
Supplied Contents	Board(s)	Series	-
Outputs and Type	1, Non-Isolated	Other Names	NCP3066SCBSTGEVBOS
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Brightness Control	Detailed Description	NCP3066 1, Non-Isolated Output LED Driver Evaluation Board
Current - Output / Channel	350mA
