Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > NCP1522BUGEVB

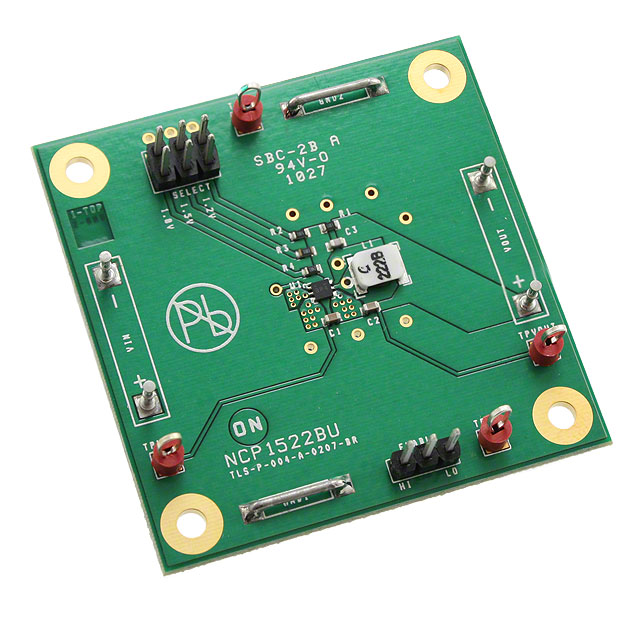

NCP1522BUGEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCP1522BUGEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NCP1522BUGEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCP1522BU
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2468 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$13.661

Product parameter
Data sheet

Product parameter

Part Number	NCP1522BUGEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCP1522BU	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2468 pcs	Data sheet	NCP1522 NCP1522BUGEVB NCP1522BUEVB Test Procedure
Category	Development Boards, Kits, Programmers	Voltage - Output	1.2V
Voltage - Input	3.6V	Utilized IC / Part	NCP1522
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Other Names	NCP1522BUEVB NCP1522BUEVBG NCP1522BUEVBOS NCP1522BUEVBOS-ND NCP1522BUGEVBOS	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	3MHz	Detailed Description	NCP1522 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	600mA	Board Type	Fully Populated
