NCP1336BDR2G

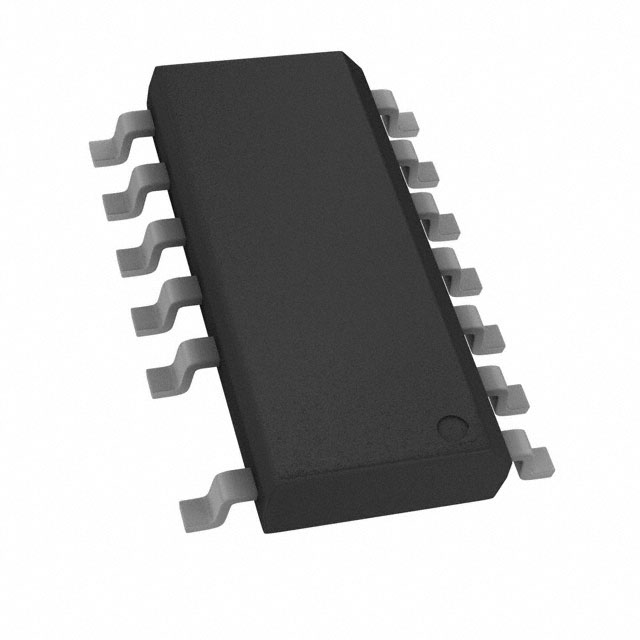

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCP1336BDR2G with confidence from Components-World.HK, 1 Year Warranty
Dowload NCP1336BDR2G Details in PDFSee Product Specifications for product details.
Buy NCP1336BDR2G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NCP1336BDR2G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC REG CTRLR FLYBK ISO PWM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.449 | $0.403 | $0.314 | $0.259 | $0.205 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | NCP1336BDR2G | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC REG CTRLR FLYBK ISO PWM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 102371 pcs | Data sheet | NCP1336A/B |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 9 V ~ 28 V |
| Voltage - Start Up | 15V | Voltage - Breakdown | - |
| Topology | Flyback | Supplier Device Package | 14-SOIC |
| Series | - | Packaging | Cut Tape (CT) |
| Package / Case | 14-SOIC (0.154", 3.90mm Width), 13 Leads | Output Isolation | Isolated |
| Other Names | NCP1336BDR2GOSCT | Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | No | Frequency - Switching | - |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit | Duty Cycle | - |
| Detailed Description | Converter Offline Flyback Topology 14-SOIC | Control Features | - |
