Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > NCP1247USBPDGEVB

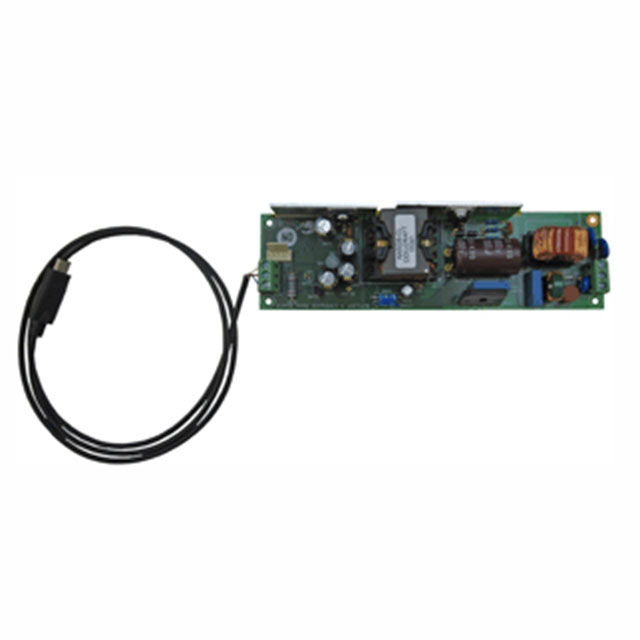

NCP1247USBPDGEVB

NCP1247USBPDGEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCP1247USBPDGEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NCP1247USBPDGEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD NCP1247USBPDG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 233 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$130.747

Product parameter
Data sheet

Product parameter

Part Number	NCP1247USBPDGEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD NCP1247USBPDG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	233 pcs	Data sheet	NCP1247 Datasheet NCP1247USBPDGEVB Test Procedure
Category	Development Boards, Kits, Programmers	Voltage - Output	-
Voltage - Input	90 ~ 265 VAC	Utilized IC / Part	NCP1247
Supplied Contents	Board(s)	Series	-
Regulator Topology	Flyback	Outputs and Type	1, Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Main Purpose	AC/DC, Primary Side
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Switching	-
Detailed Description	NCP1247 - AC/DC, Primary Side 1, Isolated Outputs Evaluation Board	Current - Output	-
Board Type	Fully Populated
