Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > NCP1081SPCGEVB

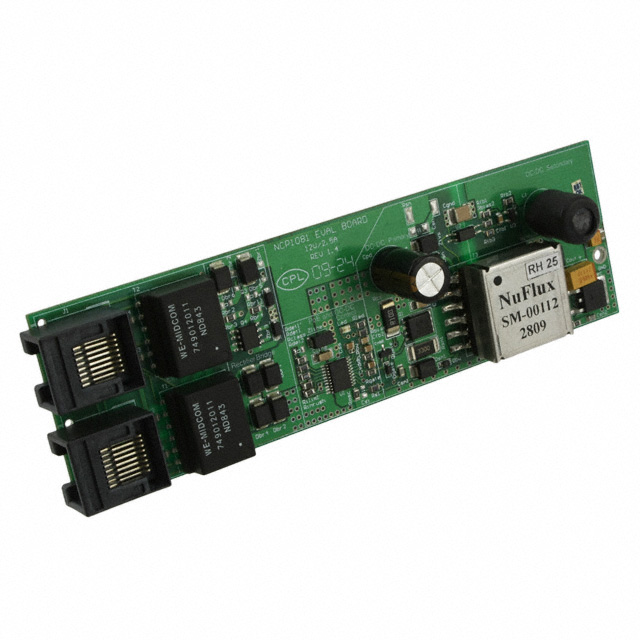

NCP1081SPCGEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCP1081SPCGEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NCP1081SPCGEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCP1081SPCG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 410 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$91.798

Product parameter
Data sheet

Product parameter

Part Number	NCP1081SPCGEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCP1081SPCG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	410 pcs	Data sheet	NCP1081 NCP1081SPCGEVB Test Procedure NCP1081SPCGEVB User's Manual
Category	Development Boards, Kits, Programmers	Voltage - Output	12V
Voltage - Input	36 V ~ 57 V	Utilized IC / Part	NCP1081
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	2, Non-Isolated
Other Names	NCP1081SPCGEVBOS	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Main Purpose	Special Purpose DC/DC, Power Over Ethernet
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Switching	250kHz
Detailed Description	NCP1081 - Special Purpose DC/DC, Power Over Ethernet 2, Non-Isolated Outputs Evaluation Board	Current - Output	2.5A
Board Type	Fully Populated
