Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > NCP1077STGEVB

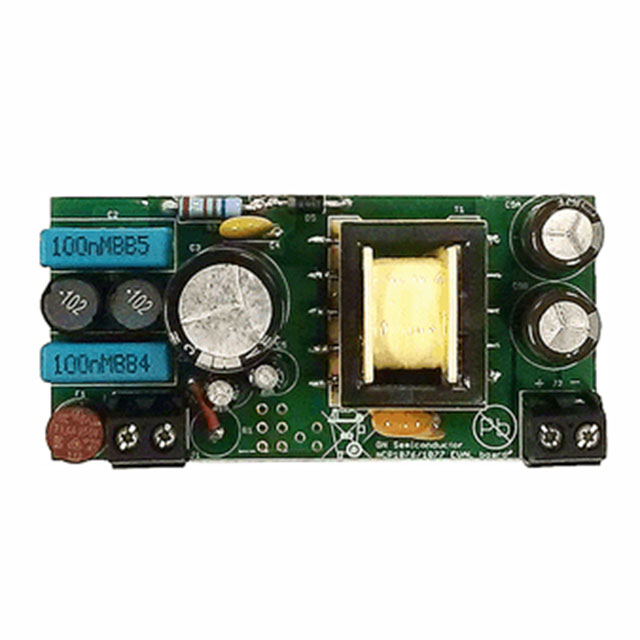

NCP1077STGEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCP1077STGEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NCP1077STGEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD NCP1077STG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1179 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$29.089

Product parameter
Data sheet

Product parameter

Part Number	NCP1077STGEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD NCP1077STG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1179 pcs	Data sheet	NCP1070-72,75-77 NCP1077STGEVB Test Procedure
Category	Development Boards, Kits, Programmers	Voltage - Output	5V
Voltage - Input	-	Utilized IC / Part	NCP1077
Supplied Contents	Board(s)	Series	-
Regulator Topology	Flyback	Outputs and Type	1, Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Main Purpose	AC/DC, Primary Side
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Switching	100kHz
Detailed Description	NCP1077 - AC/DC, Primary Side 1, Isolated Outputs Evaluation Board	Current - Output	-
Board Type	Fully Populated
