Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > NCP1030GEVB

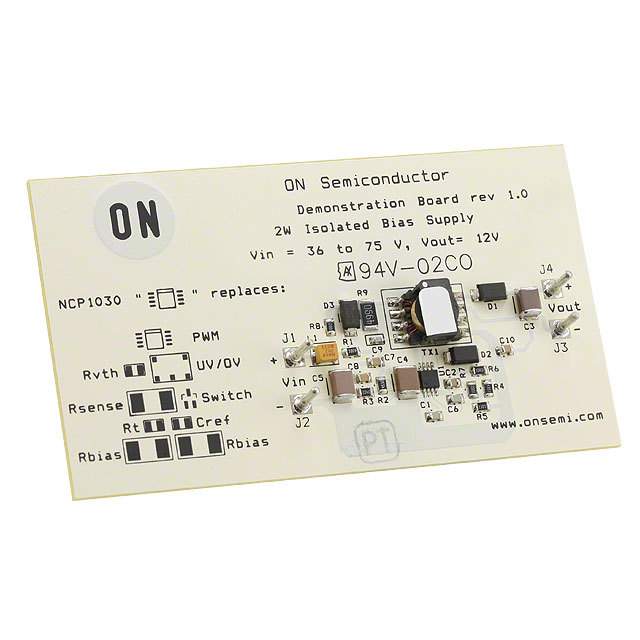

NCP1030GEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCP1030GEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NCP1030GEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCP1030
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1268 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$28.633

Product parameter
Data sheet

Product parameter

Part Number	NCP1030GEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCP1030	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1268 pcs	Data sheet	NCP1030,31
Category	Development Boards, Kits, Programmers	Voltage - Output	12V
Voltage - Input	36 V ~ 76 V	Utilized IC / Part	NCP1030
Supplied Contents	Board(s)	Series	-
Regulator Topology	Flyback	Outputs and Type	1, Isolated
Other Names	NCP1030EVBOS NCP1030EVBOS-ND NCP1030GEVBOS	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Main Purpose	Special Purpose DC/DC, Power Over Ethernet	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	250kHz	Detailed Description	NCP1030 - Special Purpose DC/DC, Power Over Ethernet 1, Isolated Outputs Evaluation Board
Current - Output	170mA	Board Type	Fully Populated
