Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - LED Drivers > NCL30100ASLDGEVB

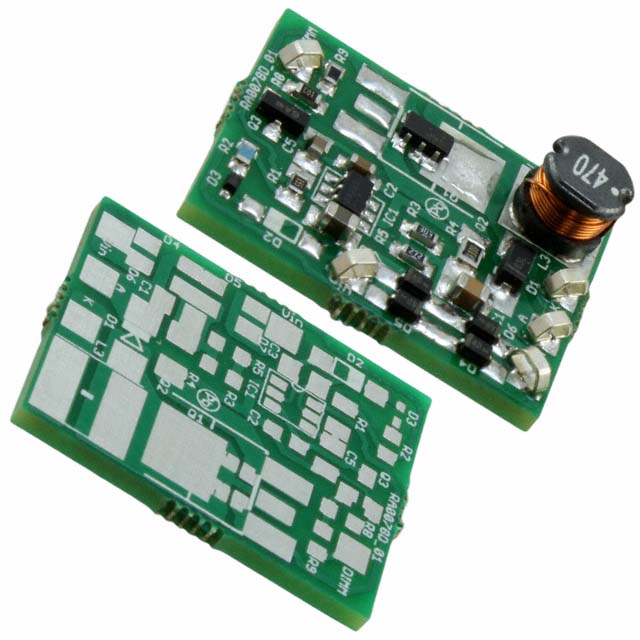

NCL30100ASLDGEVB

NCL30100ASLDGEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCL30100ASLDGEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NCL30100ASLDGEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	BOARD DEMO SGL LAYER PWM DIM LED
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2262 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$15.951

Product parameter
Data sheet

Product parameter

Part Number	NCL30100ASLDGEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	BOARD DEMO SGL LAYER PWM DIM LED	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2262 pcs	Data sheet	NCL30100
Category	Development Boards, Kits, Programmers	Voltage - Output	-
Voltage - Input	12V	Utilized IC / Part	NCL30100
Supplied Contents	Board(s)	Series	-
Outputs and Type	1, Non-Isolated	Other Names	NCL30100ASLDGEVBOS
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Dimmable	Detailed Description	NCL30100 1, Non-Isolated Output LED Driver Evaluation Board
Current - Output / Channel	-
