Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - LED Drivers > NCL30002DIM1GEVB

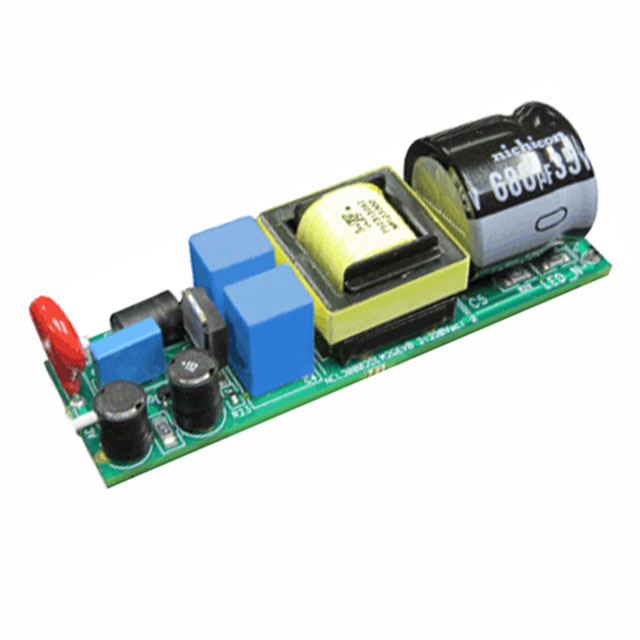

NCL30002DIM1GEVB

NCL30002DIM1GEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCL30002DIM1GEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NCL30002DIM1GEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD NCL30002DIM1G
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 935 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$31.986

Product parameter
Data sheet

Product parameter

Part Number	NCL30002DIM1GEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD NCL30002DIM1G	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	935 pcs	Data sheet	NCL30002 NCL30002DIM1GEVB Test Procedure
Category	Development Boards, Kits, Programmers	Voltage - Output	22 V ~ 26 V
Voltage - Input	100 ~ 132 VAC	Utilized IC / Part	NCL30002
Supplied Contents	Board(s)	Series	-
Outputs and Type	1, Non-Isolated	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Dimmable
Detailed Description	NCL30002 1, Non-Isolated Output LED Driver Evaluation Board	Current - Output / Channel	750mA
