MPSW01A

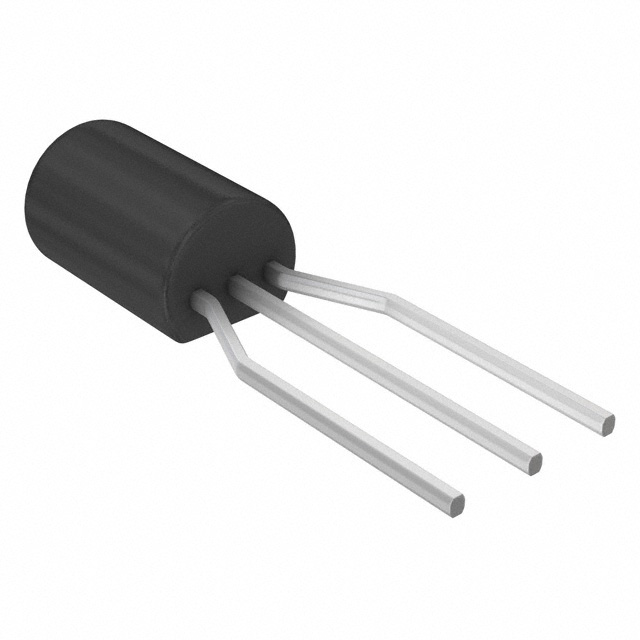

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MPSW01A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MPSW01A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MPSW01A |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | TRANS NPN 40V 1A TO92 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MPSW01A | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | TRANS NPN 40V 1A TO92 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5926 pcs | Data sheet | MPSW01(A) |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 40V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 100mA, 1A | Transistor Type | NPN |
| Supplier Device Package | TO-92 (TO-226) | Series | - |
| Power - Max | 1W | Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 Long Body | Other Names | MPSW01AOS |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Frequency - Transition | 50MHz | Detailed Description | Bipolar (BJT) Transistor NPN 40V 1A 50MHz 1W Through Hole TO-92 (TO-226) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 100mA, 1V | Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Current - Collector (Ic) (Max) | 1A | Base Part Number | MPSW01A |
