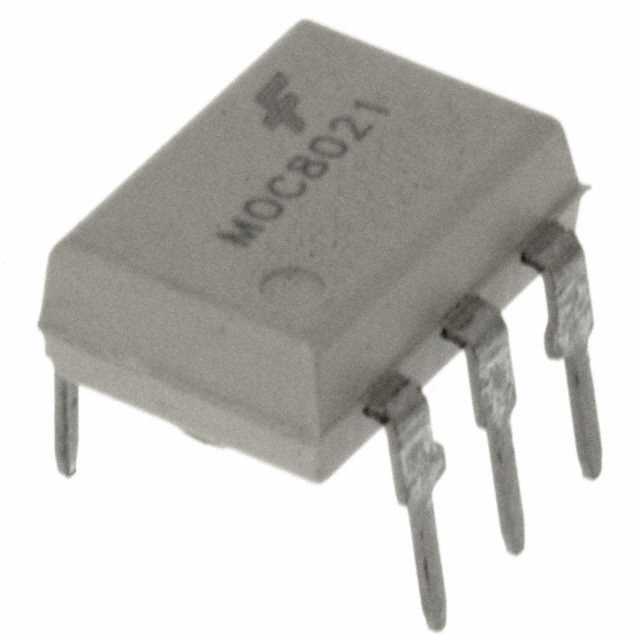

MOC8021M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MOC8021M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MOC8021M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MOC8021M |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | OPTOISO 4.17KV DARLINGTON 6DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.313 | $0.244 | $0.175 | $0.133 | $0.105 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | MOC8021M | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | OPTOISO 4.17KV DARLINGTON 6DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 210960 pcs | Data sheet | MOC8021M, M0C8050M |
| Category | Isolators | Voltage - Output (Max) | 50V |
| Voltage - Isolation | 4170Vrms | Voltage - Forward (Vf) (Typ) | 1.18V |
| Vce Saturation (Max) | - | Turn On / Turn Off Time (Typ) | 8.5µs, 95µs |
| Supplier Device Package | 6-DIP | Series | - |
| Rise / Fall Time (Typ) | - | Packaging | Tube |
| Package / Case | 6-DIP (0.300", 7.62mm) | Output Type | Darlington |
| Other Names | MOC8021-M MOC8021-MQT MOC8021-MQT-ND |
Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Darlington Output 4170Vrms 1 Channel 6-DIP | Current Transfer Ratio (Min) | 1000% @ 10mA |
| Current Transfer Ratio (Max) | - | Current - Output / Channel | 150mA |
| Current - DC Forward (If) (Max) | 60mA |
