MOC3072M

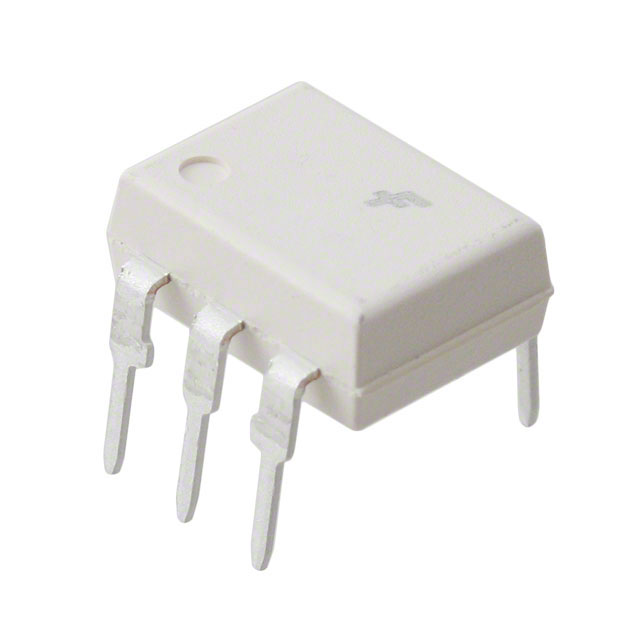

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MOC3072M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MOC3072M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MOC3072M |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | 6-PIN DIP RAND. PHASE TRIAC OUTP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.451 | $0.366 | $0.253 | $0.191 | $0.157 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | MOC3072M | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | 6-PIN DIP RAND. PHASE TRIAC OUTP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 126933 pcs | Data sheet | MOC3071M-73M |
| Category | Isolators | Zero Crossing Circuit | No |
| Voltage - Off State | 800V | Voltage - Isolation | 4170Vrms |
| Voltage - Forward (Vf) (Typ) | 1.18V | Turn On Time | - |
| Supplier Device Package | 6-DIP | Static dV/dt (Min) | 1kV/µs |
| Series | - | Packaging | Tube |
| Package / Case | 6-DIP (0.300", 7.62mm) | Output Type | Triac |
| Other Names | MOC3072M-ND MOC3072MOS |
Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | Optoisolator Triac Output 4170Vrms 1 Channel 6-DIP |
| Current - LED Trigger (Ift) (Max) | 10mA | Current - Hold (Ih) | 540µA (Typ) |
| Current - DC Forward (If) (Max) | 60mA | Approvals | UL |
