Home > Products > Isolators > Optoisolators - Triac, SCR Output > MOC3052SVM

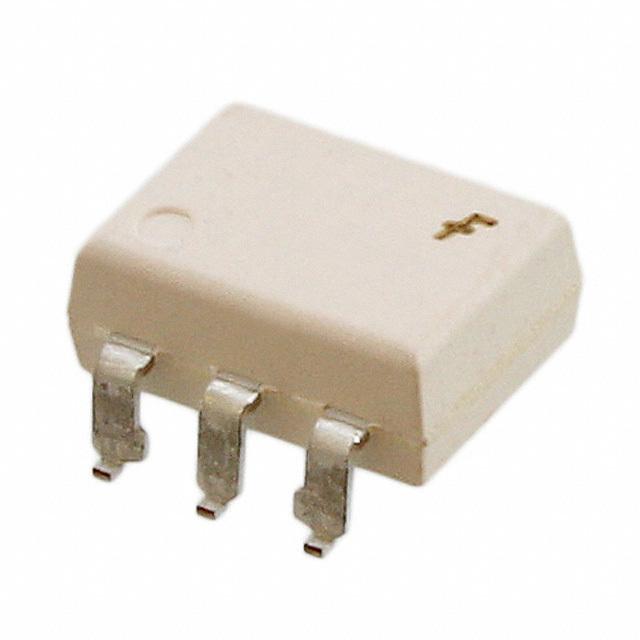

MOC3052SVM

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MOC3052SVM with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MOC3052SVM
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	OPTOISOLATOR 4.17KV TRIAC 6SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 134035 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$0.448	$0.363	$0.252	$0.19	$0.157

Product parameter
Data sheet

Product parameter

Part Number	MOC3052SVM	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	OPTOISOLATOR 4.17KV TRIAC 6SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	134035 pcs	Data sheet	MOC3051M-53M
Category	Isolators	Zero Crossing Circuit	No
Voltage - Off State	600V	Voltage - Isolation	4170Vrms
Voltage - Forward (Vf) (Typ)	1.18V	Turn On Time	-
Supplier Device Package	6-SMD	Static dV/dt (Min)	1kV/µs
Series	-	Packaging	Tube
Package / Case	6-SMD, Gull Wing	Output Type	Triac
Operating Temperature	-40°C ~ 85°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	Optoisolator Triac Output 4170Vrms 1 Channel 6-SMD	Current - LED Trigger (Ift) (Max)	10mA
Current - Hold (Ih)	220µA (Typ)	Current - DC Forward (If) (Max)	60mA
Approvals	UR, VDE
