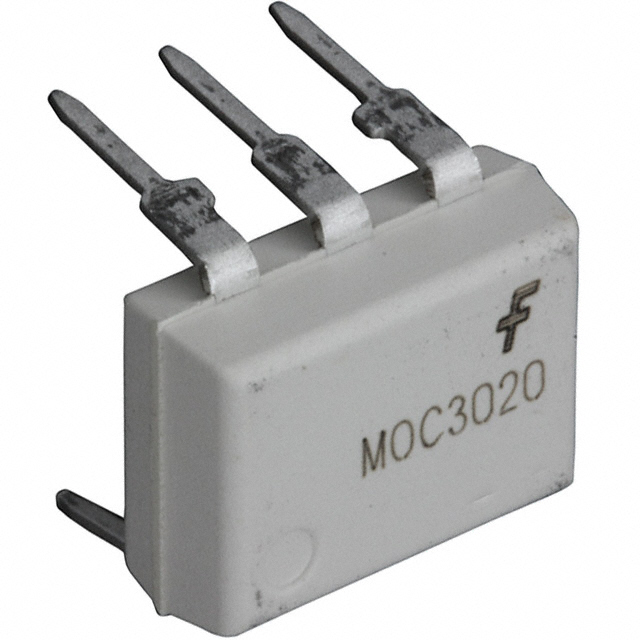

MOC3020M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MOC3020M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MOC3020M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MOC3020M |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | OPTOISOLATOR 4.17KV TRIAC 6DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.289 | $0.224 | $0.16 | $0.121 | $0.096 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | MOC3020M | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | OPTOISOLATOR 4.17KV TRIAC 6DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 208436 pcs | Data sheet | MOC3010-12M, MOC3020-23M |
| Category | Isolators | Zero Crossing Circuit | No |
| Voltage - Off State | 400V | Voltage - Isolation | 4170Vrms |
| Voltage - Forward (Vf) (Typ) | 1.15V | Turn On Time | - |
| Supplier Device Package | 6-DIP | Static dV/dt (Min) | - |
| Series | - | Packaging | Tube |
| Package / Case | 6-DIP (0.300", 7.62mm) | Output Type | Triac |
| Other Names | MOC3020-M MOC3020-MQT MOC3020-MQT-ND MOC3020MFS |
Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | Optoisolator Triac Output 4170Vrms 1 Channel 6-DIP |
| Current - LED Trigger (Ift) (Max) | 30mA | Current - Hold (Ih) | 100µA (Typ) |
| Current - DC Forward (If) (Max) | 60mA | Approvals | UL |
