MMBT2222AT

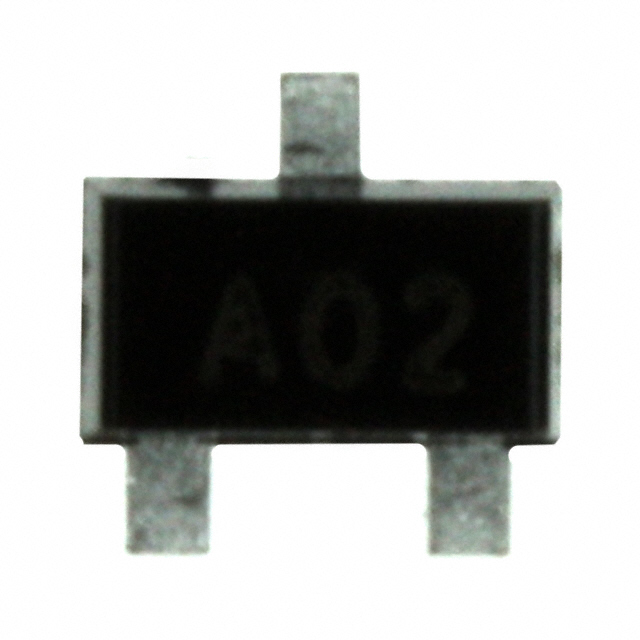

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MMBT2222AT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MMBT2222AT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MMBT2222AT |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | TRANS NPN 40V 0.6A SOT523F |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | 30000 pcs | 75000 pcs |
|---|---|---|---|---|---|
| $0.022 | $0.02 | $0.017 | $0.016 | $0.015 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | MMBT2222AT | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | TRANS NPN 40V 0.6A SOT523F | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1604196 pcs | Data sheet | MMBT2222AT Datasheet |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 40V |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 50mA, 500mA | Transistor Type | NPN |
| Supplier Device Package | SOT-523F | Series | - |
| Power - Max | 250mW | Packaging | Tape & Reel (TR) |
| Package / Case | SC-89, SOT-490 | Other Names | MMBT2222AT-ND MMBT2222ATTR |
| Operating Temperature | 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Transition | 300MHz |
| Detailed Description | Bipolar (BJT) Transistor NPN 40V 600mA 300MHz 250mW Surface Mount SOT-523F | DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 1V |
| Current - Collector Cutoff (Max) | - | Current - Collector (Ic) (Max) | 600mA |
| Base Part Number | MMBT2222 |
