MCT5201SR2M

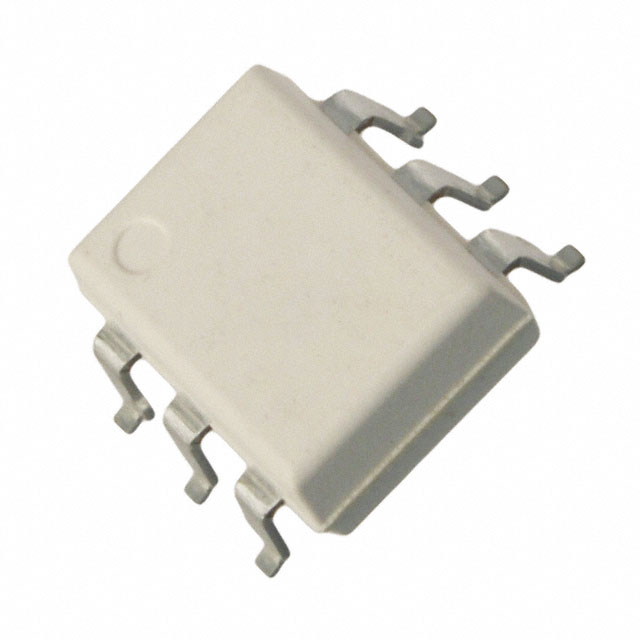

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MCT5201SR2M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MCT5201SR2M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MCT5201SR2M |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | OPTOISO 7.5KV TRANS W/BASE 6SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MCT5201SR2M | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | OPTOISO 7.5KV TRANS W/BASE 6SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5154 pcs | Data sheet | MCT5201,10,11M |
| Category | Isolators | Voltage - Output (Max) | 30V |
| Voltage - Isolation | 7500Vpk | Voltage - Forward (Vf) (Typ) | 1.25V |
| Vce Saturation (Max) | 400mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 6-SMD | Series | - |
| Rise / Fall Time (Typ) | 2.5µs, 16µs | Packaging | Cut Tape (CT) |
| Package / Case | 6-SMD, Gull Wing | Output Type | Transistor with Base |
| Other Names | MCT5201SR2MCT | Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | DC | Detailed Description | Optoisolator Transistor with Base Output 7500Vpk 1 Channel 6-SMD |
| Current Transfer Ratio (Min) | 120% @ 5mA | Current Transfer Ratio (Max) | - |
| Current - Output / Channel | 150mA | Current - DC Forward (If) (Max) | 50mA |
