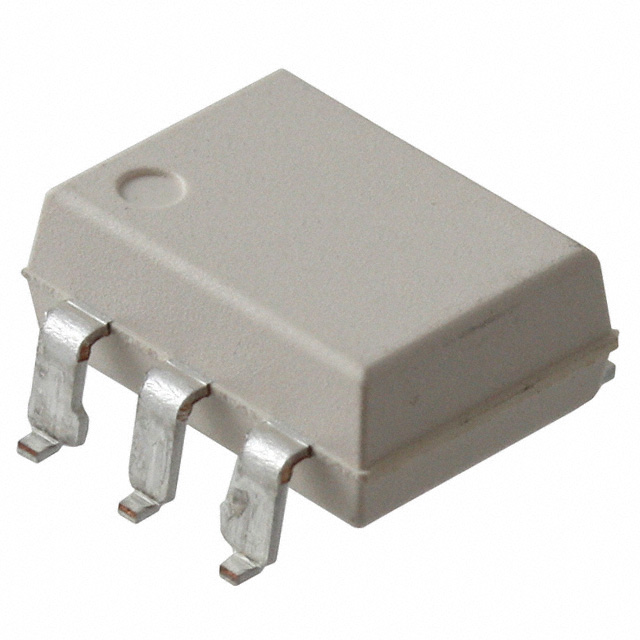

MCT2ESR2VM
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MCT2ESR2VM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MCT2ESR2VM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MCT2ESR2VM |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | OPTOISO 7.5KV TRANS W/BASE 6SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 5000 pcs | 10000 pcs | 25000 pcs |
|---|---|---|---|---|---|
| $0.106 | $0.099 | $0.095 | $0.094 | $0.092 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | MCT2ESR2VM | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | OPTOISO 7.5KV TRANS W/BASE 6SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 216316 pcs | Data sheet | MCT2xxM Series |
| Category | Isolators | Voltage - Output (Max) | 30V |
| Voltage - Isolation | 7500Vpk | Voltage - Forward (Vf) (Typ) | 1.25V |
| Vce Saturation (Max) | 400mV | Turn On / Turn Off Time (Typ) | 2µs, 2µs |
| Supplier Device Package | 6-SMD | Series | - |
| Rise / Fall Time (Typ) | 2µs, 1.5µs | Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, Gull Wing | Output Type | Transistor with Base |
| Other Names | MCT2ESR2VM-ND MCT2ESR2VMTR |
Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor with Base Output 7500Vpk 1 Channel 6-SMD | Current Transfer Ratio (Min) | 20% @ 10mA |
| Current Transfer Ratio (Max) | - | Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 60mA |
